RV Series
Features
Click to view standard features and featured options
CONSTRUCTION
Composite Shell Construction
INTELLI-CORE Structural Composite Floor, Walls, and Roof
Aluminum Alloy Frame, 360 Deg Welds at Joints
Black Anodized Trim
Aluminum Wheels
Long Arm Torsion Suspension
High-Speed Electric Jack Lift/Lower System with Push Button Controls
Fully Insulated Ramp Door w/ 86″ x 85.5″ Rear Opening
L Track Tie Down System
Color Matched INTELLI-CORE Structural Composite Doors
ELECTRICAL
Perimeter LED Lighting w/ Dimmer Control; LED Task Lighting
Numerous 120V Outlets, 12V Chare Ports, and USB Charge ports
55 Amp Power Center, Battery Gauge, Battery Disconnect Switch
AM/FM/CD/DVD Stereo w/Bluetooth & Premium Marine Speakers
120VAC Smart TV with Inverter on Locking Side Arm Mount w/ Digital King Omni-Pro Antenna
LP/CO Alarm, Smoke Detector, Fire Extinguisher
COMFORT
High-Efficiency Forced Air Truma Combi Furnace and Water Heater
-Operates on either LP and 12V or 120V Power
High Efficiency, 15K BTU Air Conditioner w/ Heat Pump
BATHROOM + KITCHENETTE
Year-Round Usability w/ Easy Drain Down
1/2 Bath
-Flushing Toilet with Bath Sink
3/4 Bath
-Flushing Toilet with Bath Sink and Spacious Shower
8026 Kitchen
-21″Â Oven and 3 Burner Cooktop w/ Flush Glass Top and Exhaust Fan
-Stainless Steel 1 cu ft Microwave
-Kitchen Sink
-Large 10 cu ft Refrigerator that Runs on 12V. Run It Down the Road. No Hole in the Wall!
8019 and 8022 Kitchen
-2 Burner Cooktop w/ Flush Glass Top and Exhaust Fan
-Stainless Steel 1 cu ft Microwave
-Kitchen Sink
-Large 10 cu ft Refrigerator that Runs on 12V. Run It Down the Road. No Hole in the Wall!
FLUID TANK SIZING
8026 3/4 Bath
-40 Gallon Fresh Water Tank
-38 Gallon Grey Tank
-33 Gallon Black Tank
8019 and 8022 3/4 Bath
-20 Gallon Fresh Water Tank
-38 Gallon Grey Tank
-33 Gallon Black Tank
1/2 Bath
–15 Gallon Fresh Water TankÂ
-33 Gallon Grey/Black Combined Tank
FEATURED OPTIONS
E-DRIVE Electrical Power System
Armless Electric Side Awning w/ Auto Rain and Wind Control
Exterior RGB Lighting Package
Ultra-Leather Furniture Upgrade
Fusion Exterior In-Wall Marine Soundbar
Laminate Cabinet Upgrade
8019RV
Overall Length – 272″
Overall Height – 128″
Overall Width – 102″
Garage Space – (L x W x H)
– PKG 53: 143″ x 73″ x 87″
– PKG 54: 116″ x 73″ x 87″
– Ramp Door Opening – 86″ W x 85.5″ H
Base Weight
– PKG 53 – 3,707 lbs
– PKG 54 – 3,957 lbs
GVWR – 6,250 lbs

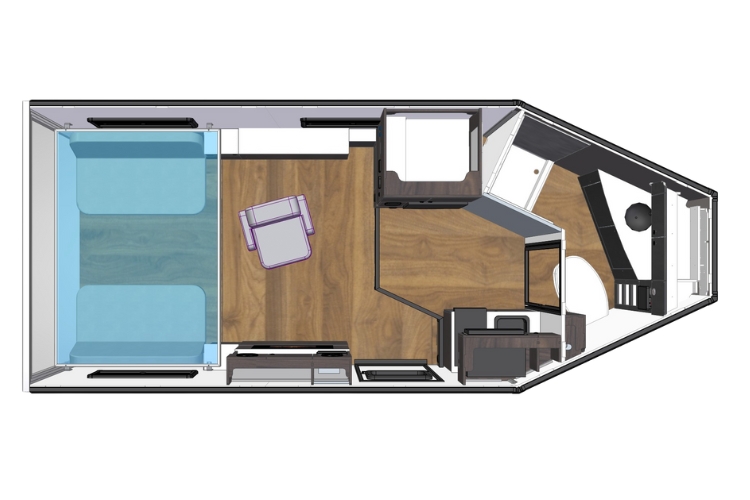

8019 RV Floor Plans
A LOOK AT THE 8019RV w/ E-DRIVE AFTER 1 YEAR
8022RV
Overall Length – 300″
Overall Height – 128″
Overall Width – 102″
Garage Space – (L x W x H)
– PKG 53: 174″ x 73″ x 87″
– PKG 54: 148″ x 73″ x 87″
– Ramp Door Opening – 86″ W x 85.5″ H
Base Weight
– PKG 53 – 4,700 lbs
– PKG 54 – 4,950 lbs
GVWR – 9,999 lbs

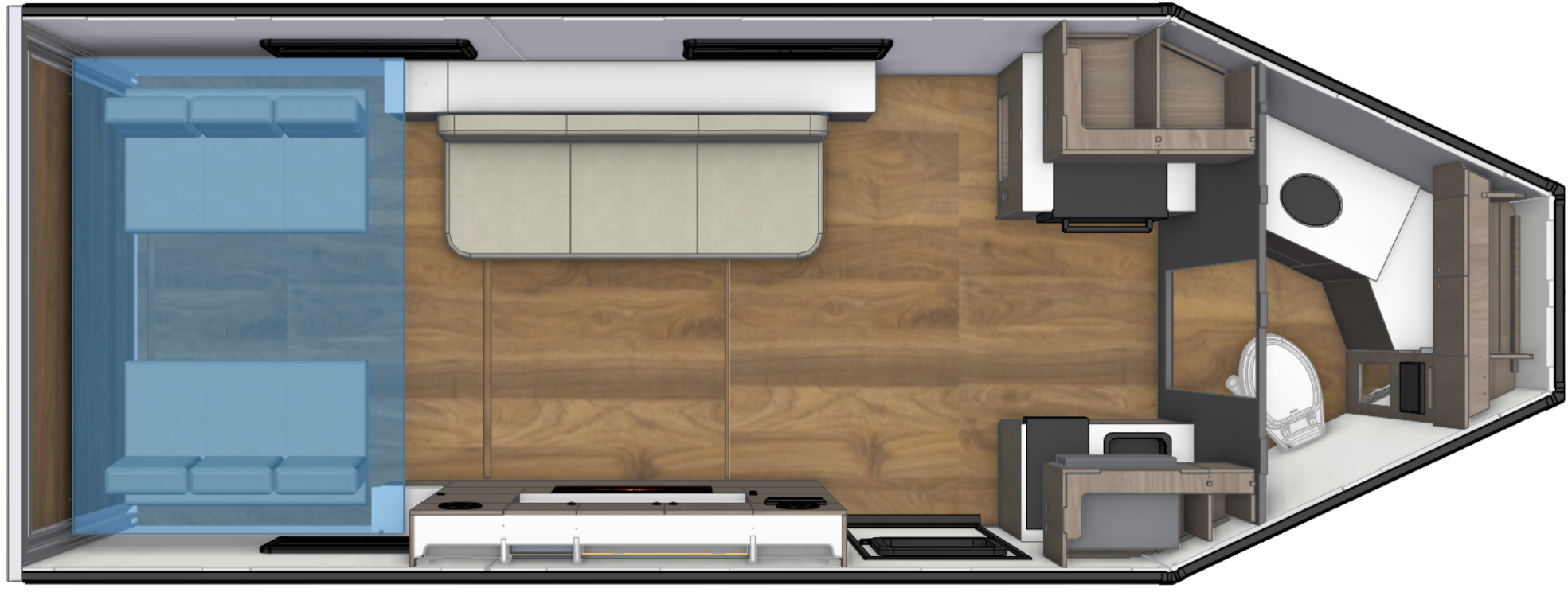

8022 RV Floor Plans

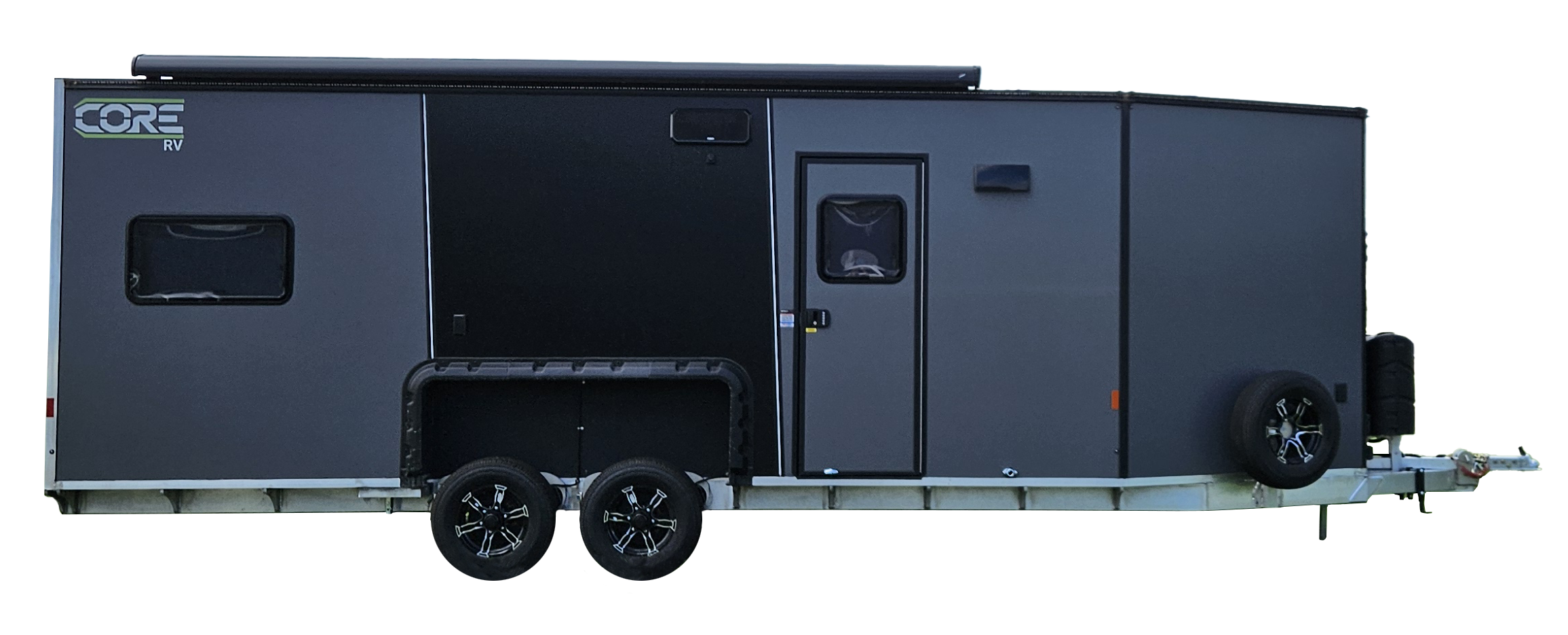

8026RV
Overall Length – 352″
Overall Height – 128″
Overall Width – 102″
Garage Space – (L x W x H)
– PKG 53: 221″ x 73″ x 87″
– PKG 54: 195″ x 73″ x 87″
– Ramp Door Opening – 86″ W x 85.5″ H
Base Weight
– PKG 53 – 5,240 lbs
– PKG 54 – 5,490 lbs
GVWR – 9,999 lbs

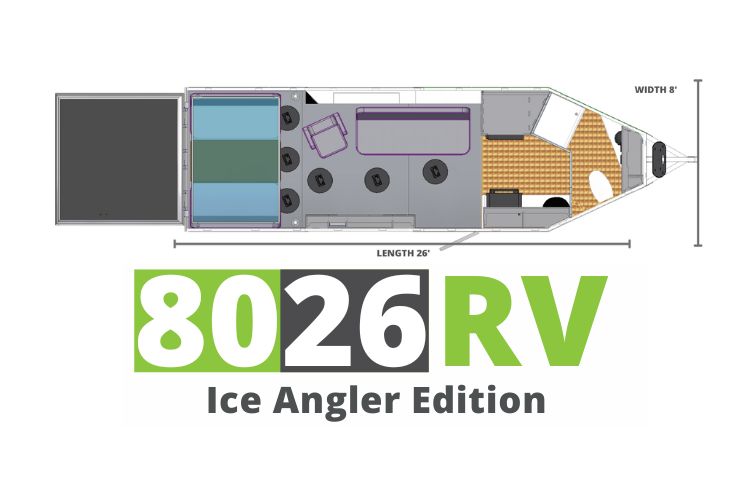

8026 RV Floor Plans
