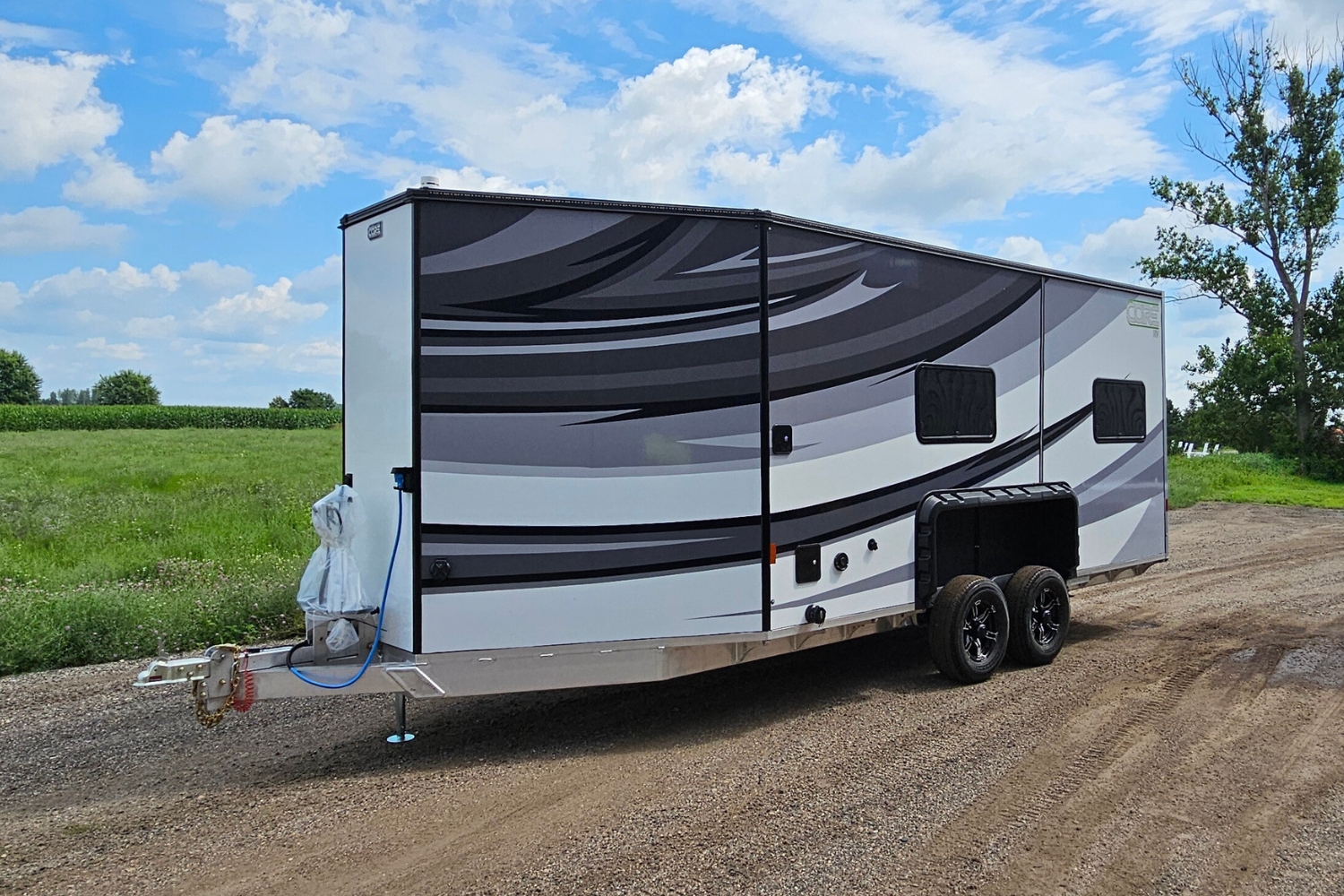

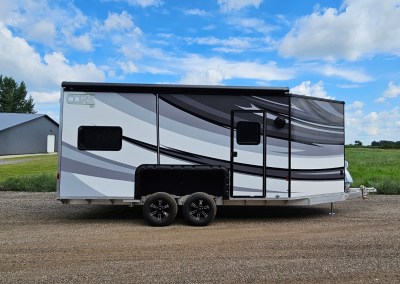

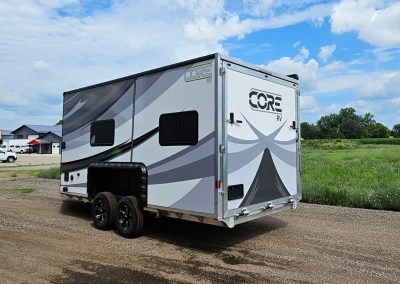

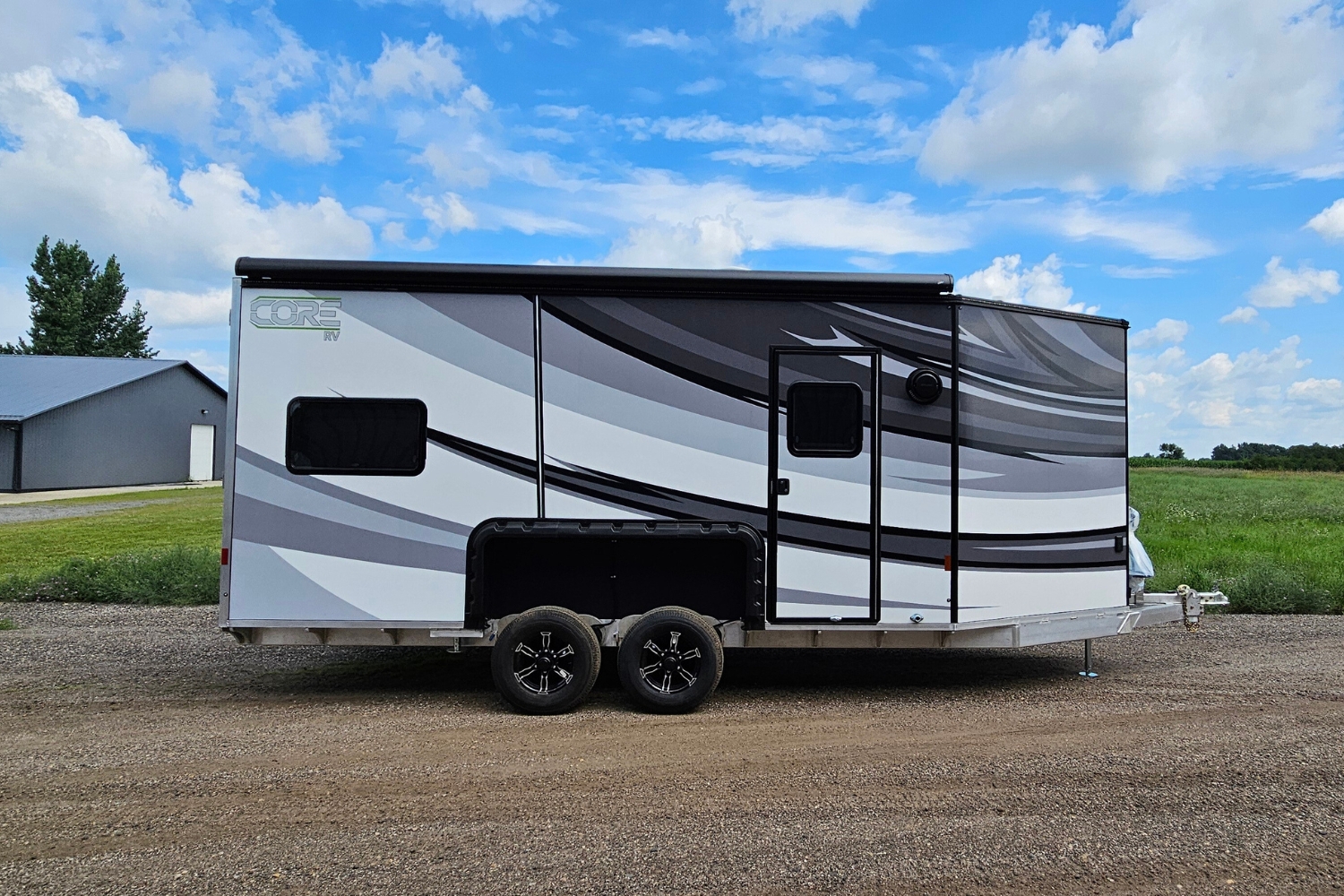

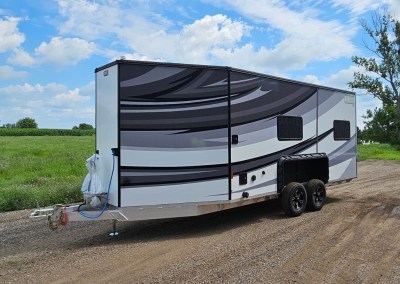

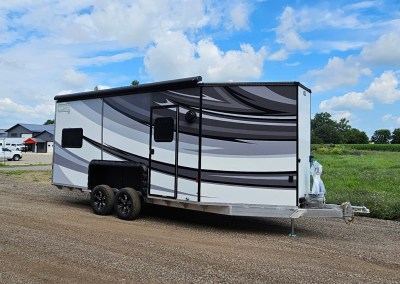

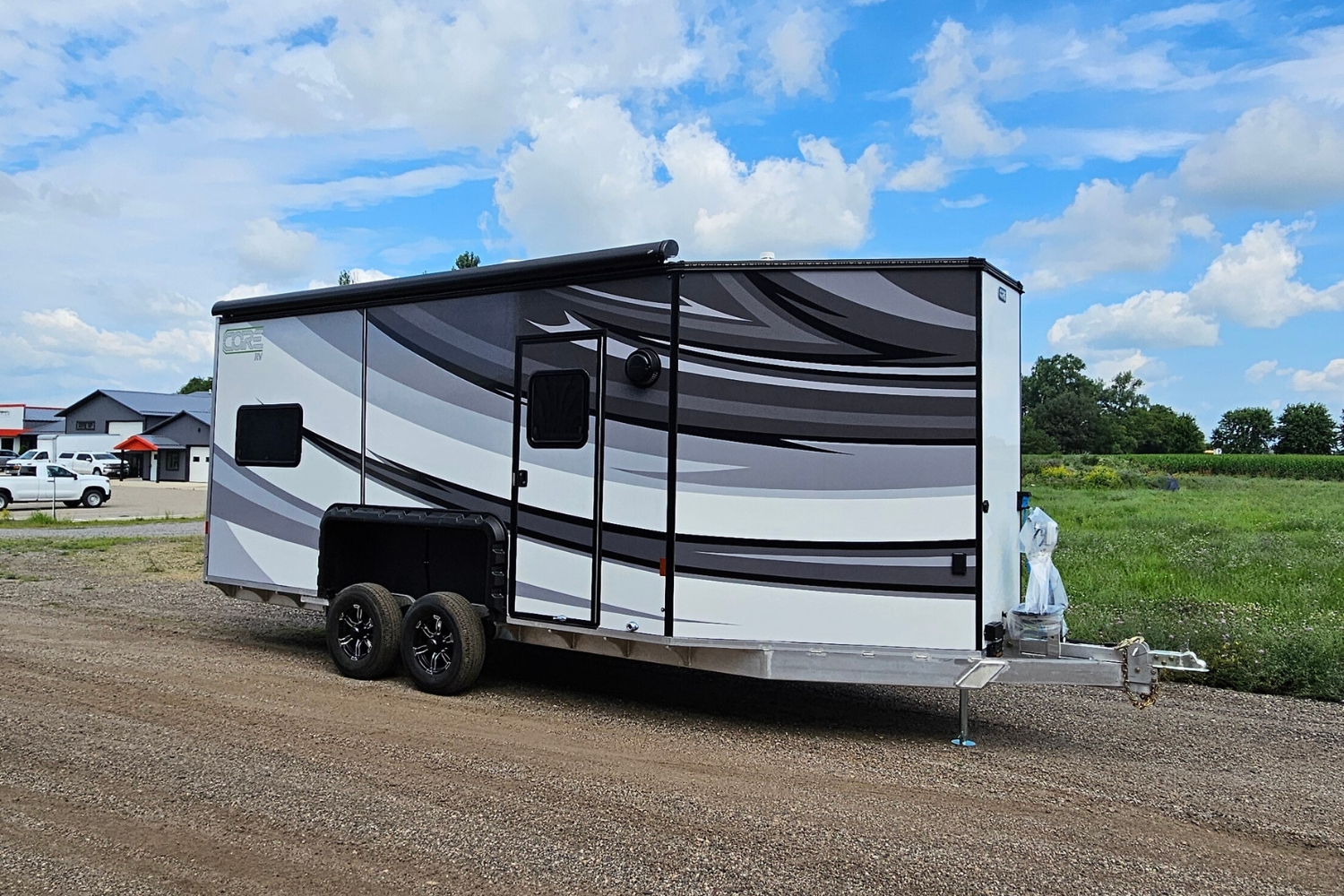

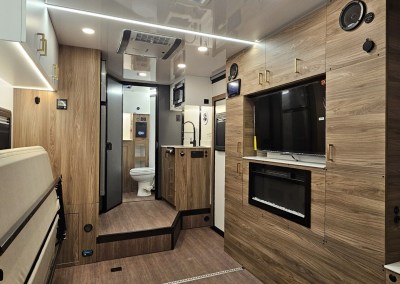

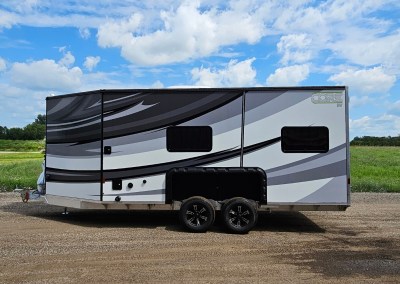

CORE RV 8022
Specifications:
Length – 26?
Width – 8? 6?
Height – 10? 6?
Garage Space (L x W x H)
– 1/2 Bath: 174.5? x 73? x 85?
– 3/4 Bath: 148? x 73? x 85?
Base Weight – 4,590 lbs
GVWR – 9,999lbs
Sleeps 6
Pricing:
MSRP $86,795
Options, Taxes, Licensing Extra
STANDARD FEATURES + OPTIONS
Click to view the standard features and available options.
CONSTRUCTION
Composite Shell Construction
– INTELLI-CORE Structural Composite Floor, Walls, and Roof
– Aluminum Alloy Frame, 360 Deg Welds at Joints
– Aluminum Wheels
– Long Arm Torsion Suspension
– High-Speed Electric Jack Lift/ Lower System with Push Button Controls

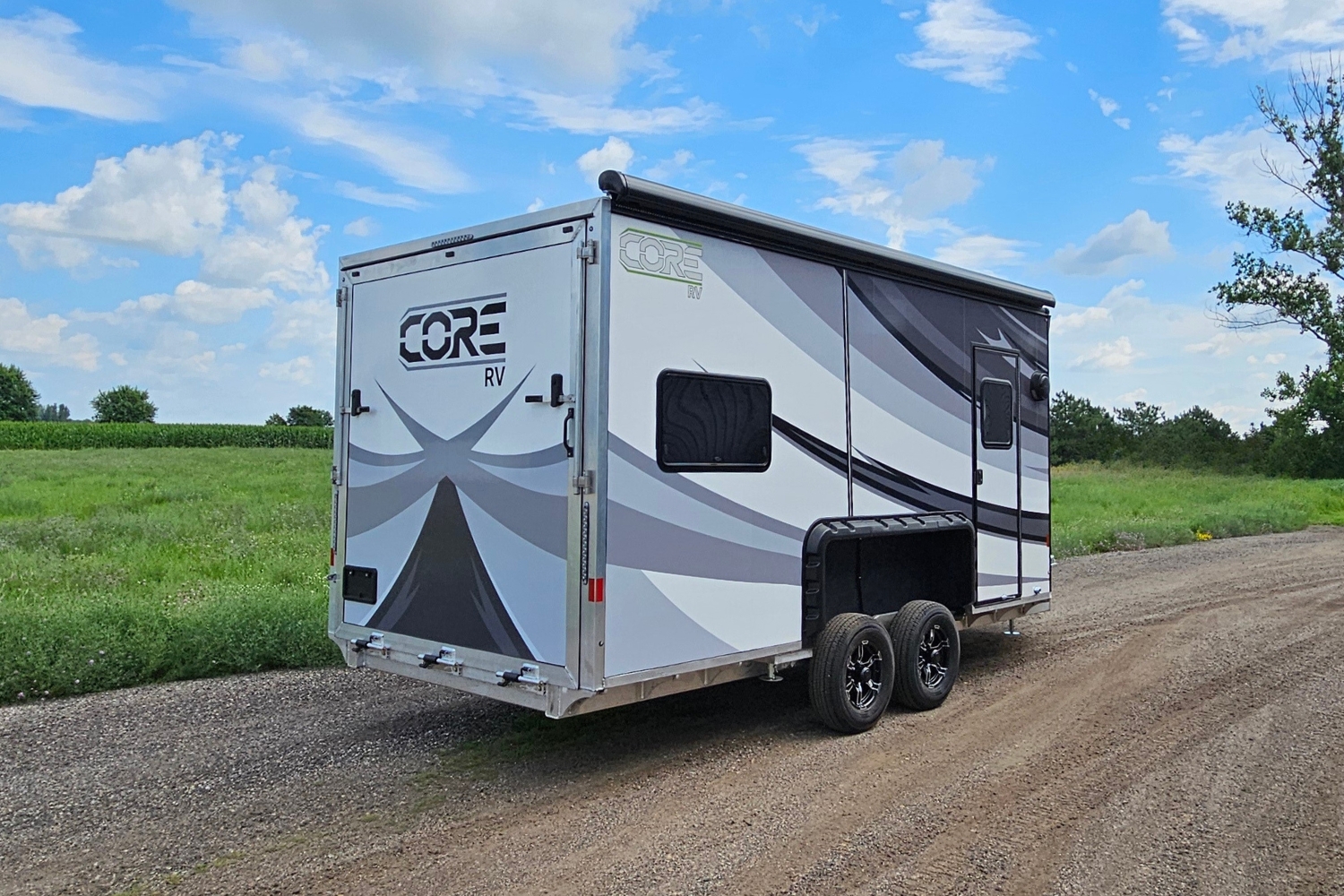

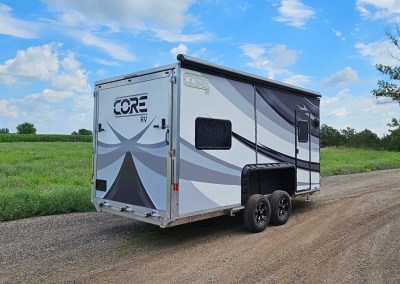

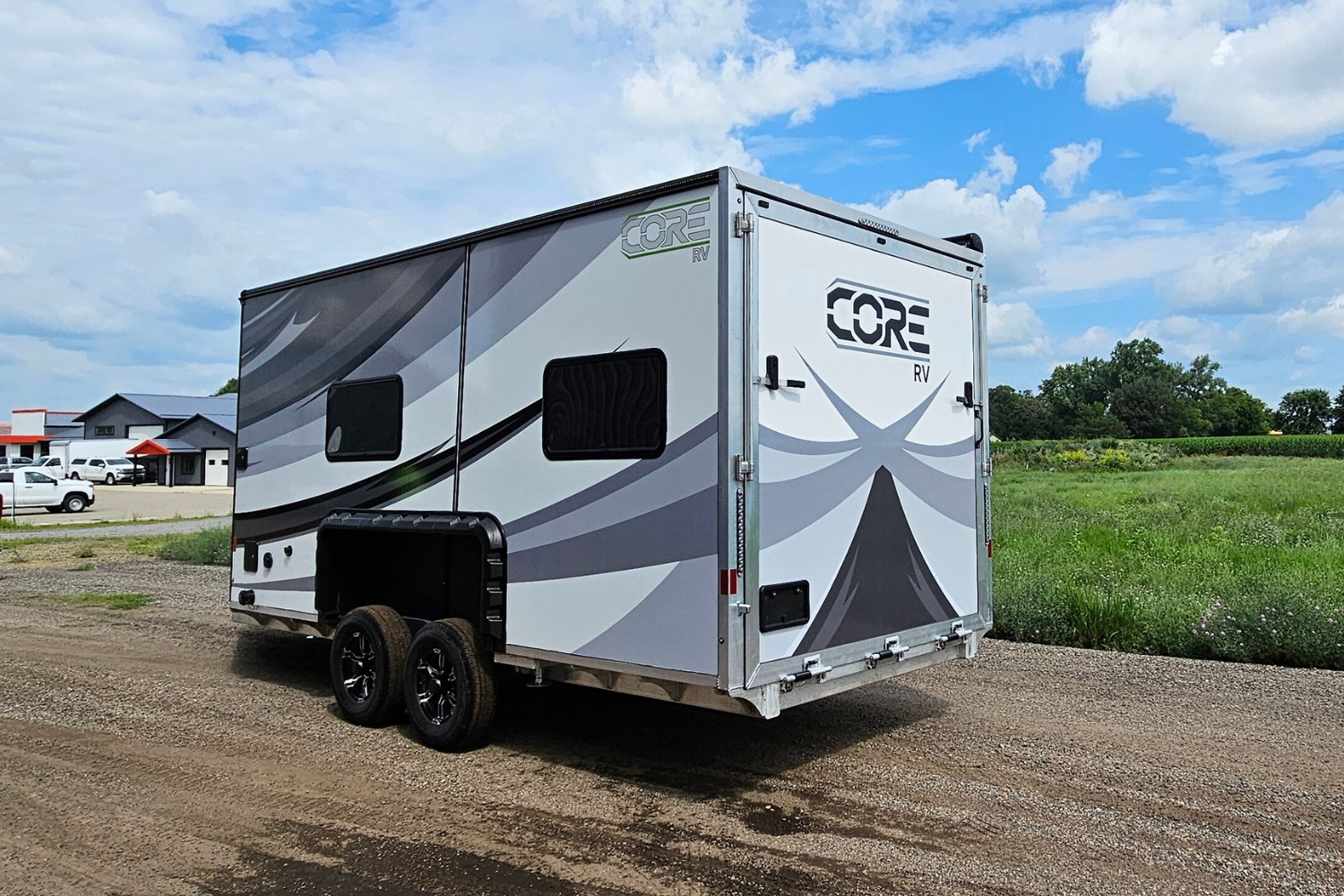

– Fully Insulated Ramp Door w/ 86″ x 85.5″ Rear Opening
– Color Matched INTELLI-CORE Structural Composite Doors
ELECTRICAL
– Bluetooth Capable Unit Control Through Phone App
– Perimeter LED Lighting w/ Dimmer Control; LED Task Lighting
– 110V Outlet, 12V Outlet, USB Charge ports
– 45 Amp Power Center, Battery Gauge, Battery Disconnect Switch
– AM/FM/DVD Stereo w/Bluetooth Speakers

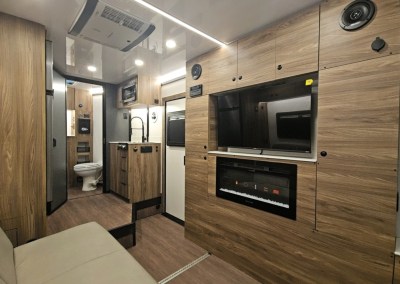

– 40″ 12VDC Sidewall TV on Locking Side Arm Mount w/ Digital King Omni-Pro Antenna
– LP/CO Alarm, Smoke Detector, Fire Extinguisher
COMFORT
– High-Efficiency Forced Air Truma Combi Furnace (12V/LP or 110V modes)
– High Efficiency, Low Profile A/C Unit (15K BTU, 13 amps Power Draw, 110V)

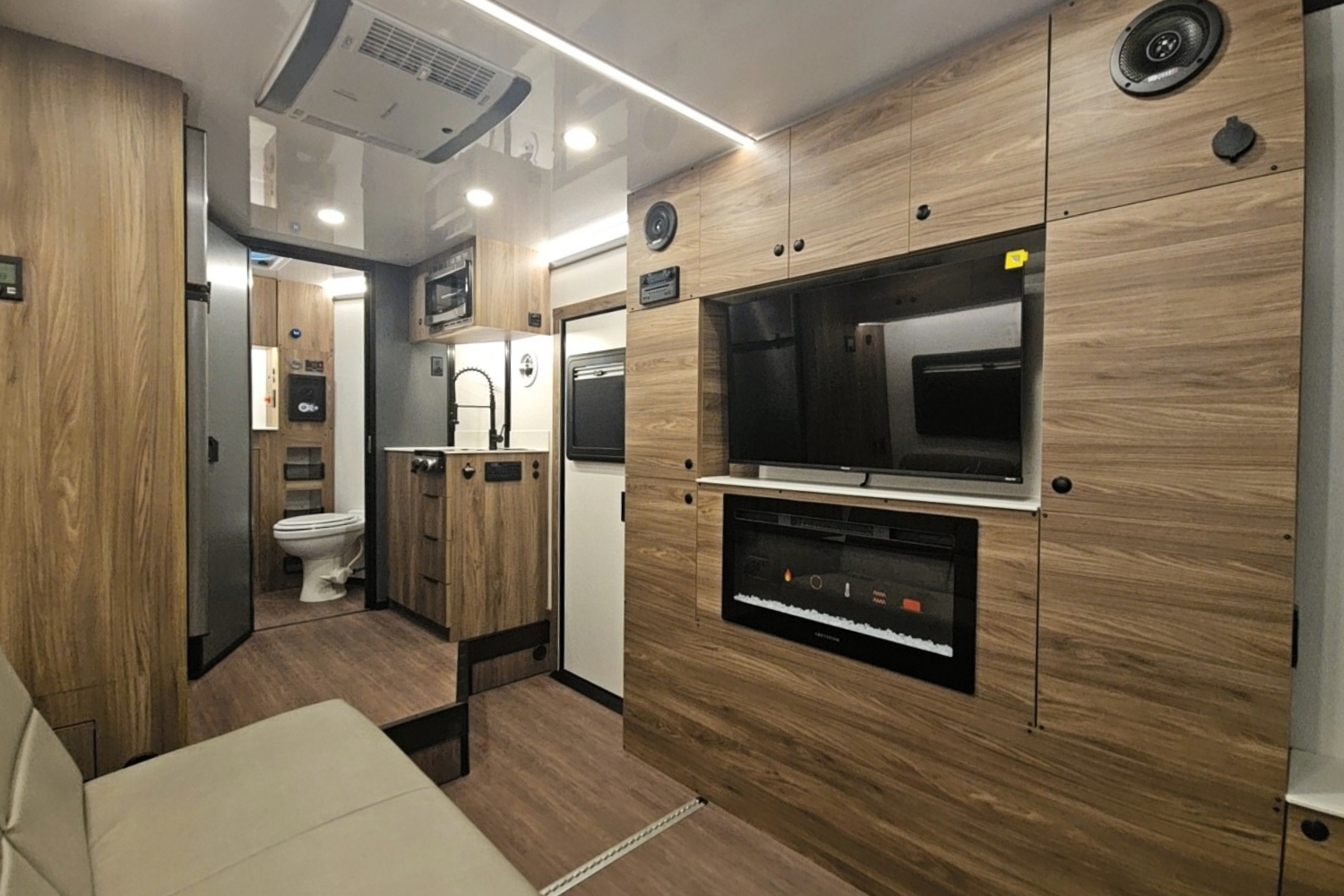

BATHROOM + KITCHENETTE

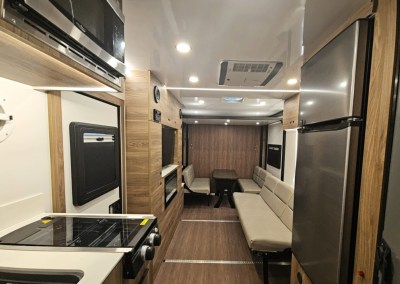

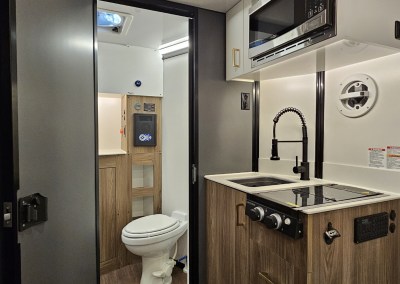

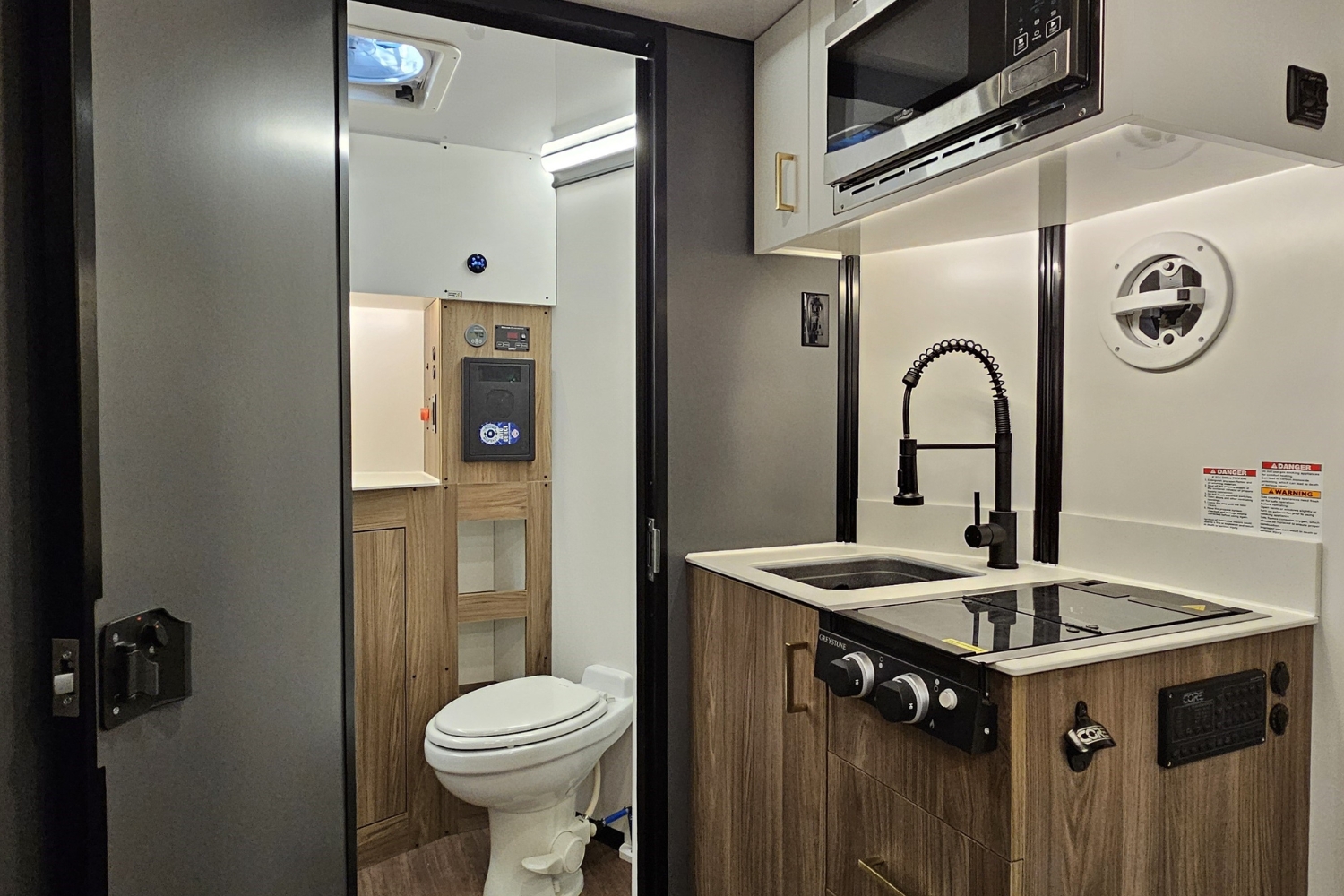

Kitchen
– 2Â Burner Cooktop w/ Flush Glass Top
– Stainless Steel 1 Cu Ft Microwave
– Kitchen Sink
– Large 10 cu ft Refrigerator that Runs on 12V.  Run It Down the Road; No Hole in the Wall!

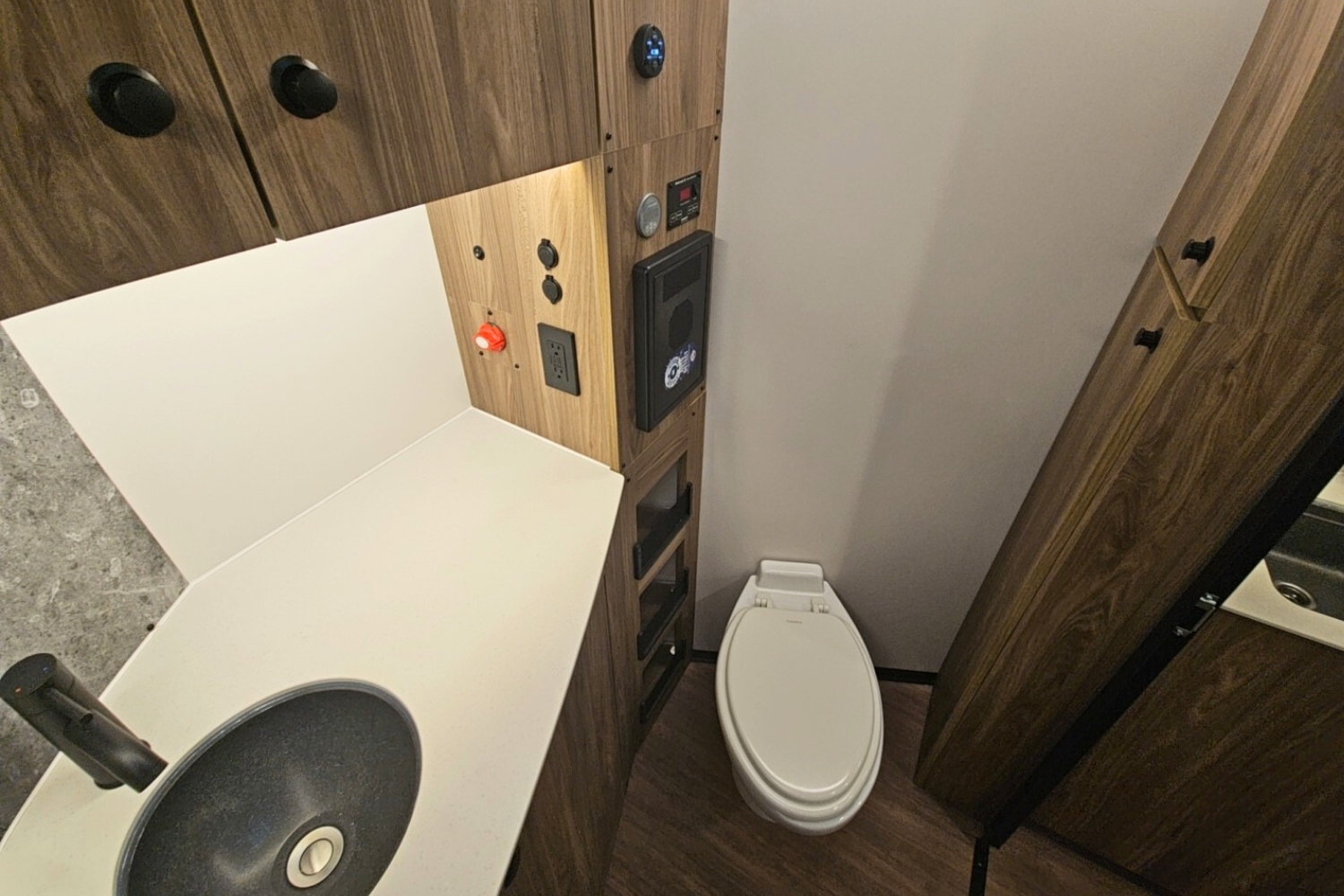

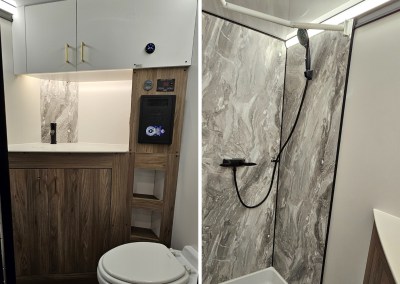

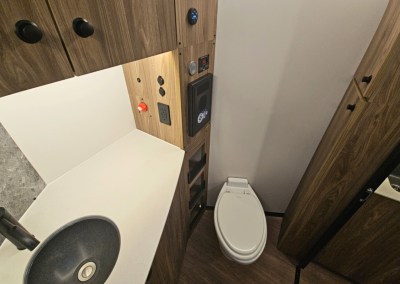

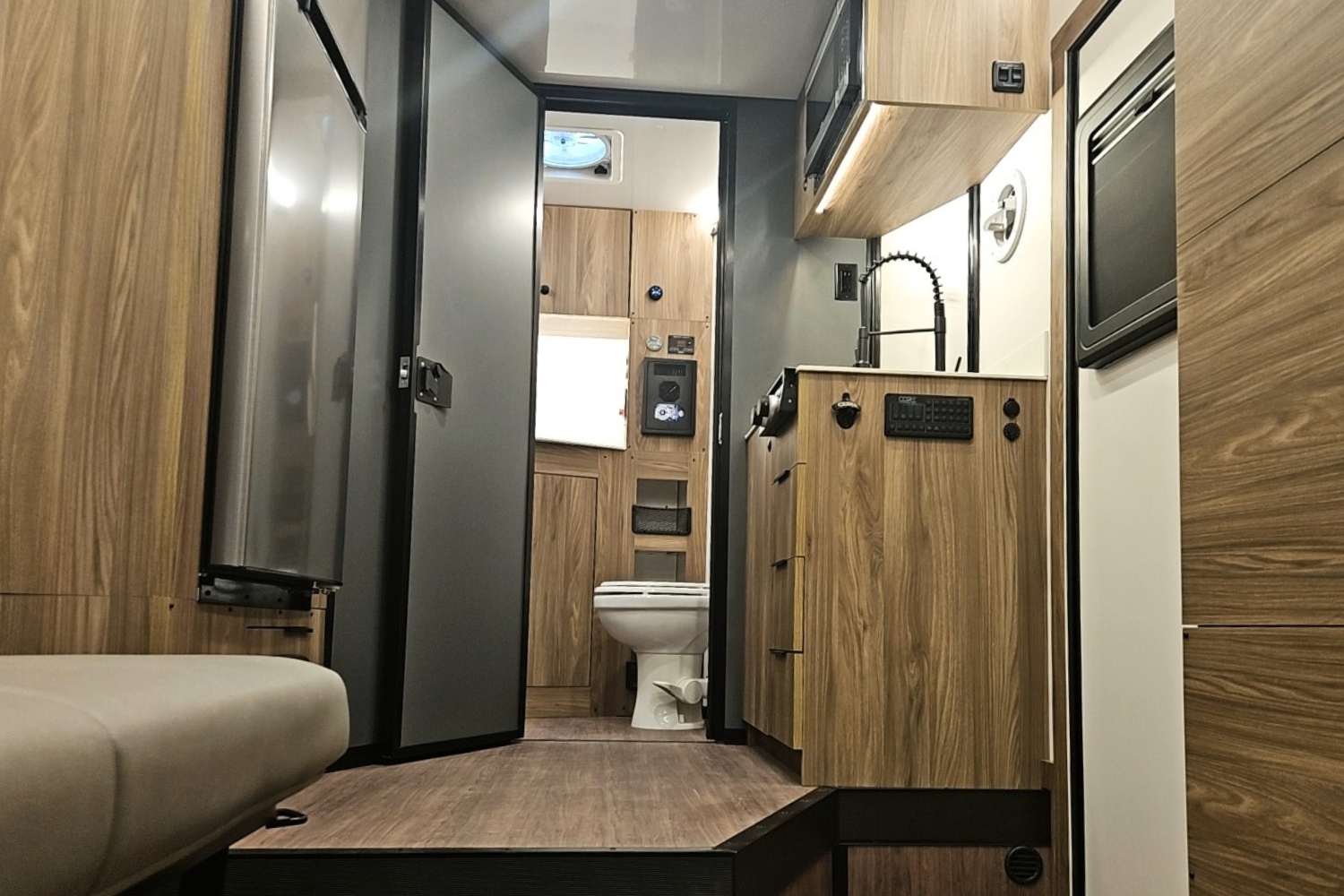

     Bathroom
     – Full Flushing Toilet
     – Sink in Bathroom
     – Shower
     – Year-Round Usability
     – Advanced Water System
     – Quick, Easy Drain Down
TANK CAPABILITIES
1/2 Bath:
- 15 Gallon Fresh Water TankÂ
- 33 Gallon Combined Grey/Black
3/4 Bath:Â
- 20 Gallon Fresh Water Tank
- 39 Gallon Grey Tank
- 33 Gallon Black Tank
OPTIONS
Electrical
– Armless Electric Side Awning w/ Auto Rain and Wind Control
– Exterior RGB Kit w/ RGB Control Center
       E-DRIVE:
       – Up to 1.5kW Solar Panel Package
       – Up to 15.3kWh Energy Storage
       – 4kW Constant 120VAC Power / 9kW Boost

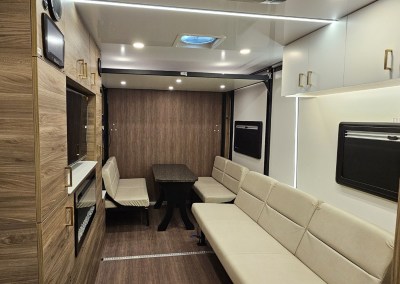

Furniture
– Premium CORE Mid Back Captain’s Chair (Chair, Mount, 12″ Post)
– Premium CORE Atwood Centric Boat Seat (Seat, Mount, 15″ Post)
– Pedestal Seat Base (Springfield Plug-In Style, Base Only)
Entertainment
– Fusion Exterior In-Wall Marine Soundbar
– Exterior Coax Port
Interior Finish
– Laminate Cabinets w/ Dozens of Options
– Walnut Woodgrain Flooring Upgrade

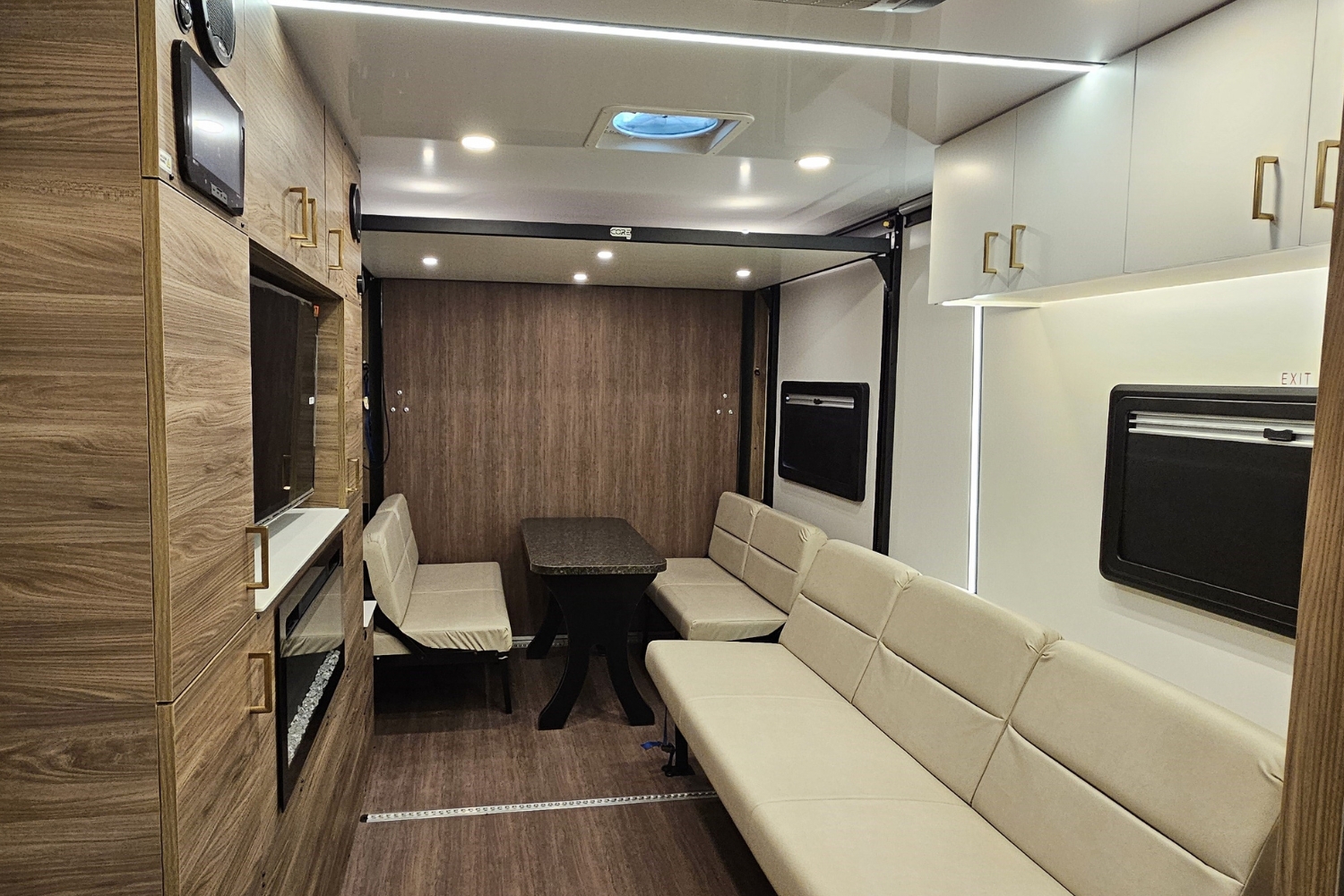

FLOOR PLANS

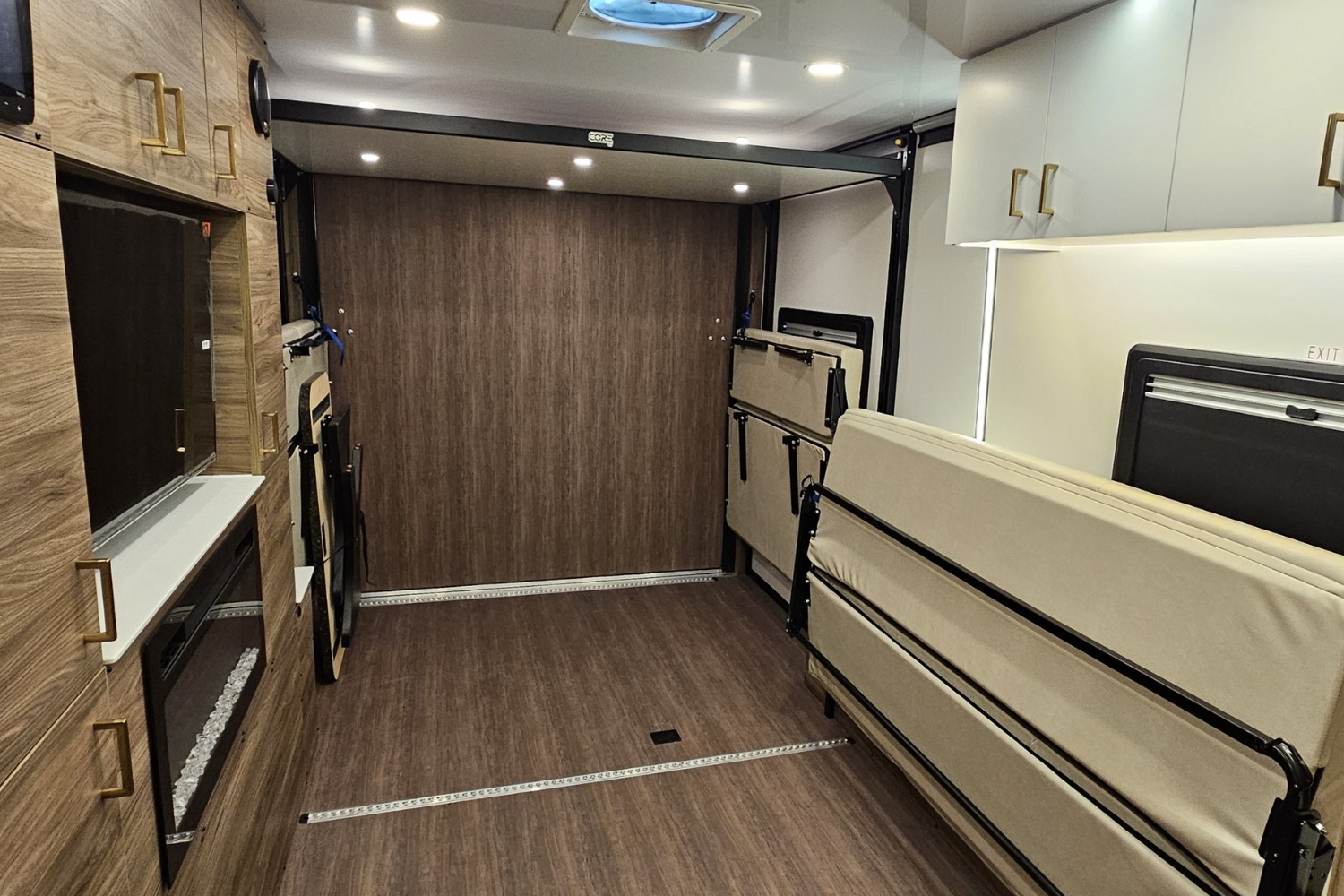

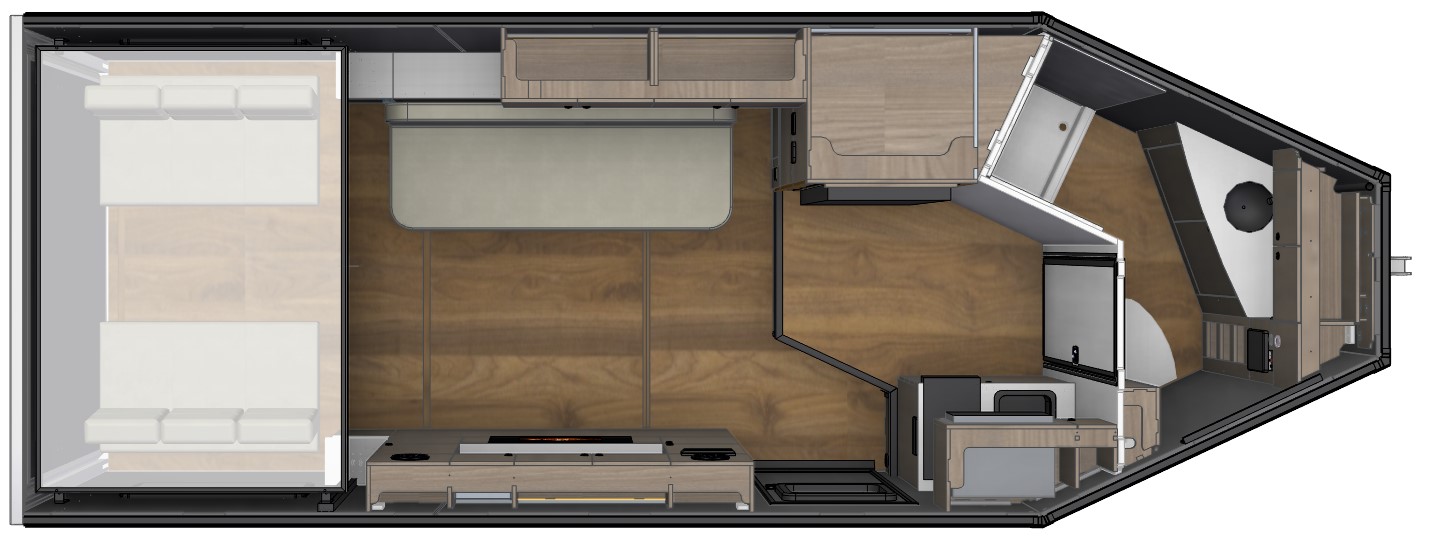

ATX (w/ Ramp Door)
ACX (Rear Wall w/ Window)
VIDEO WALKTHROUGH OF THE 8022RV
Higher Quality
COMPOSITE PANEL CONSTRUCTION
100% composite panel construction is extremely lightweight, strong, durable, dent-resistant, and waterproof.
STAY WARM OR COOL
The best insulated trailers on the market allow for quick and easy heat up or cool down for maximum comfort with minimal power needs.
GROUND CLEARANCE
Torsion suspension and open undercarriage design improves approach angles and increases off-road capability. Wiring is protected inside the trailer and not exposed under the frame.
