FIBER SPLICING TRAILERS

Engineered with an all-aluminum frame and composite panel construction, our stud-less design is the right solution for you!

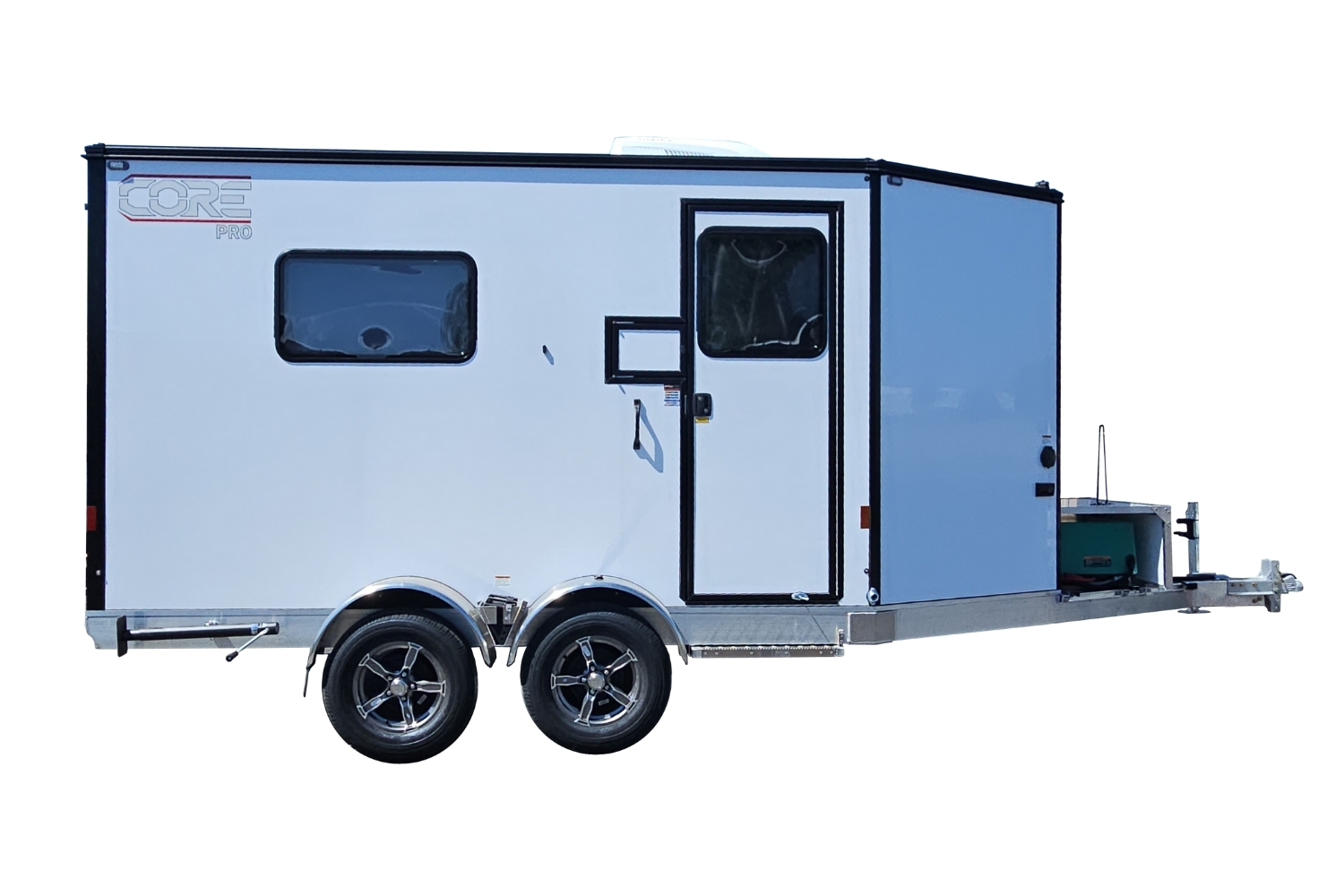

7015FT

Tandem Axle (shown w/ options)

Overall Length	252″
Overall Height (A/C)	118″
Overall Width	102″
Ground Clearance	16″
Interior Height	80.5″
Interior Width	80.25″
Interior Length	187.125″
Base Weight	2,565 lbs
GVWR	7,000 lbs

360° View 7015FT

E-DRIVE

Up to 25.5kWh Lithium Battery Storage | Up to 1140W of Solar Panels | 9kW Boost & 4kW Constant Inverter

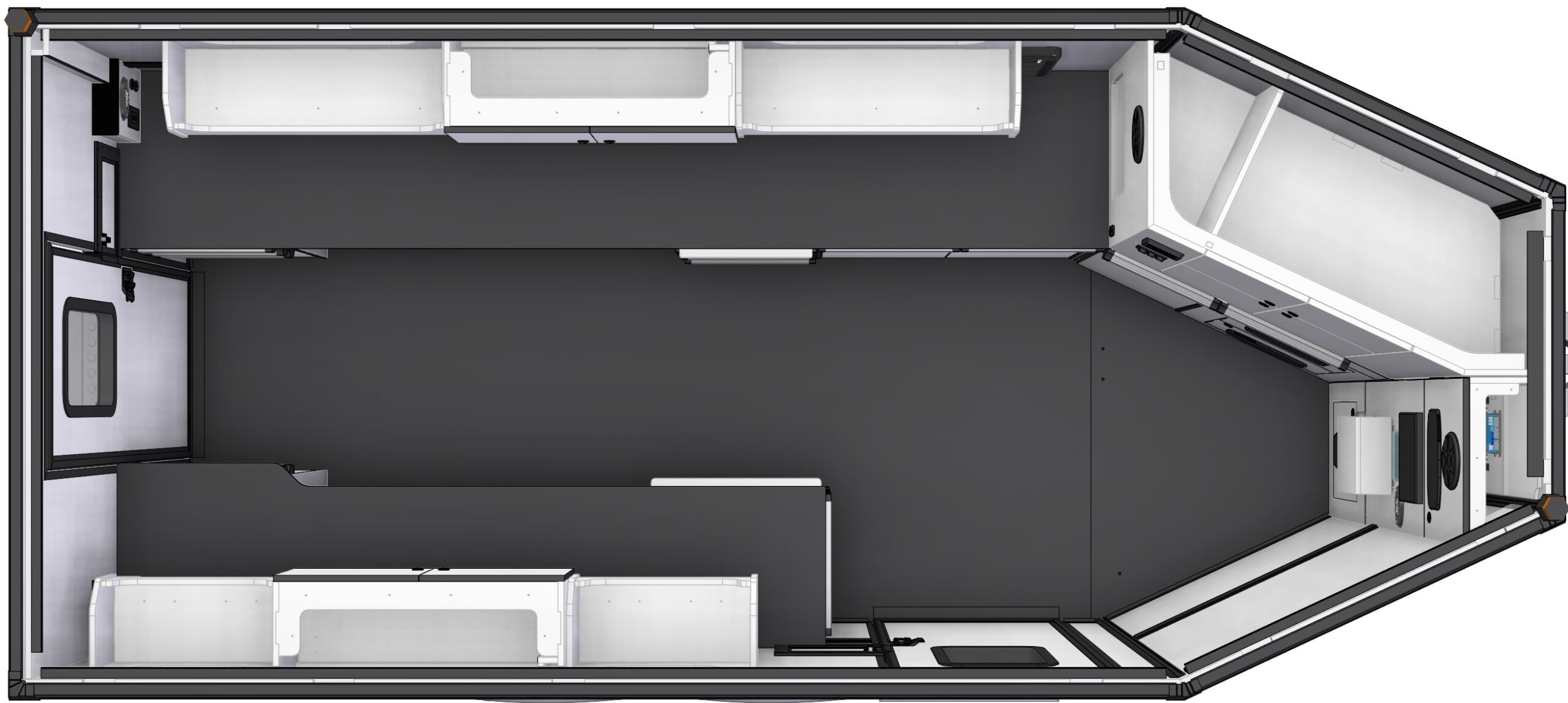

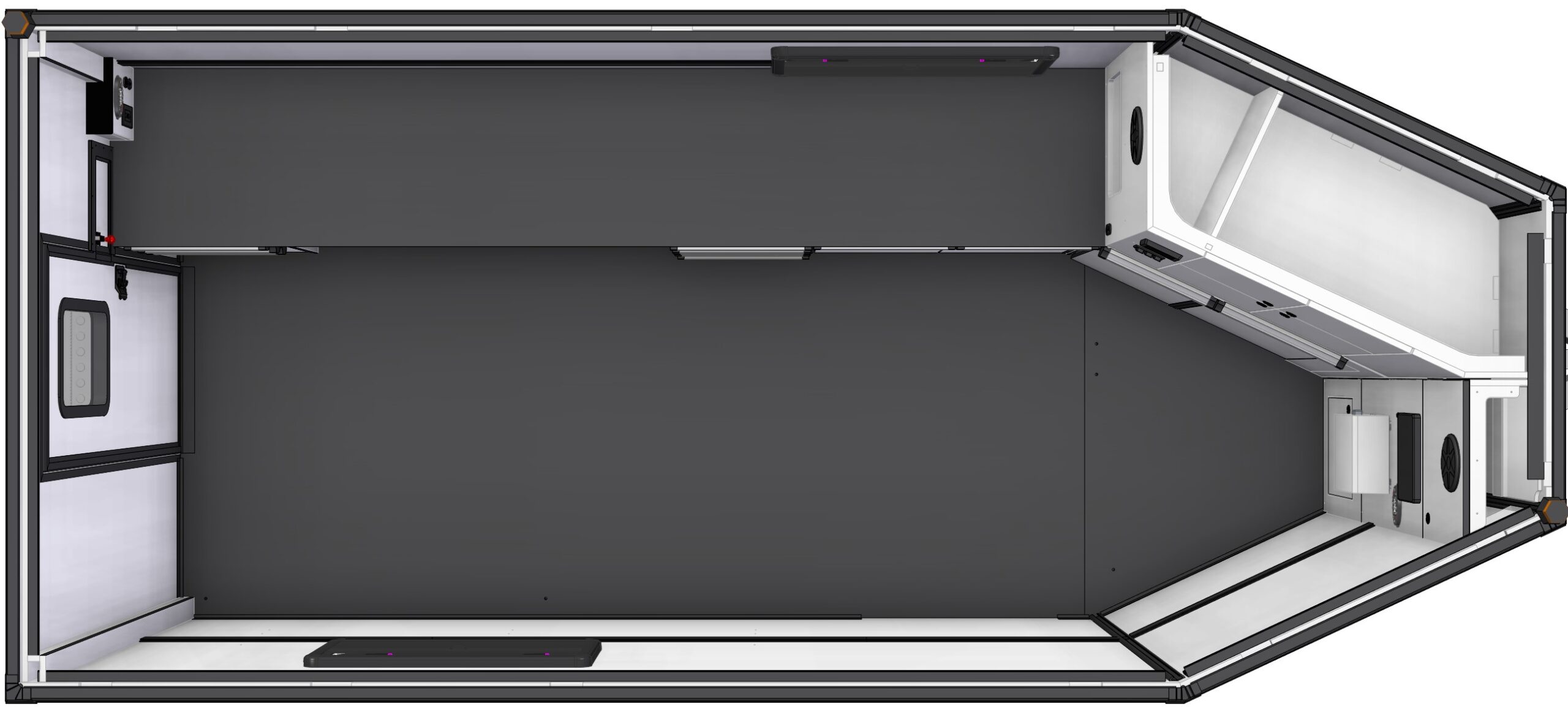

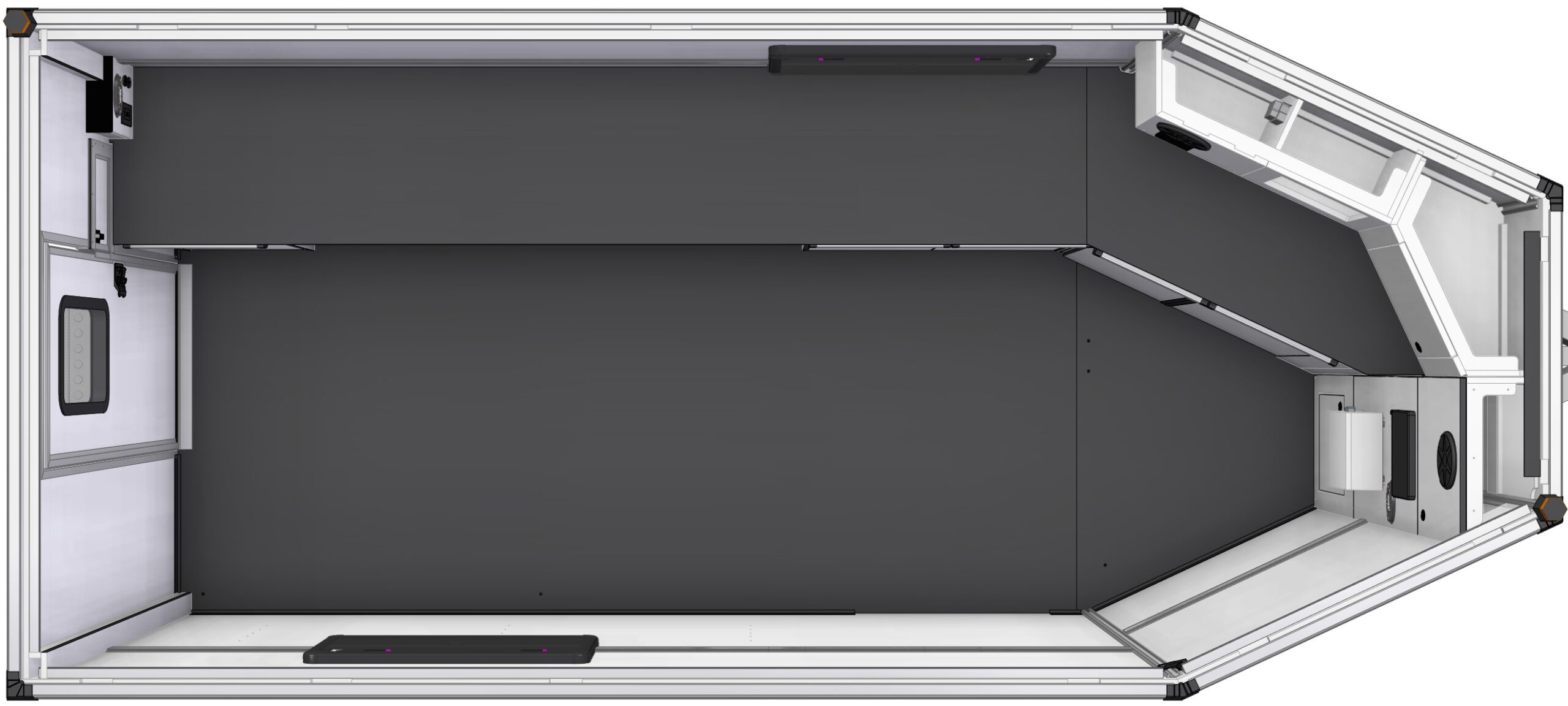

Example Floor Plans

Fully Featured

Standard

Fleet Edition

CORE PRO Fleet models have the same DNA of our Deluxe models but with a simplified feature list. These models are ideal for large volume orders or for users not looking for all the features and benefits of the Deluxe model.

Expect the same performance, quality, comfort, and functionality but at a reduced cost. Minimum quantity order required.

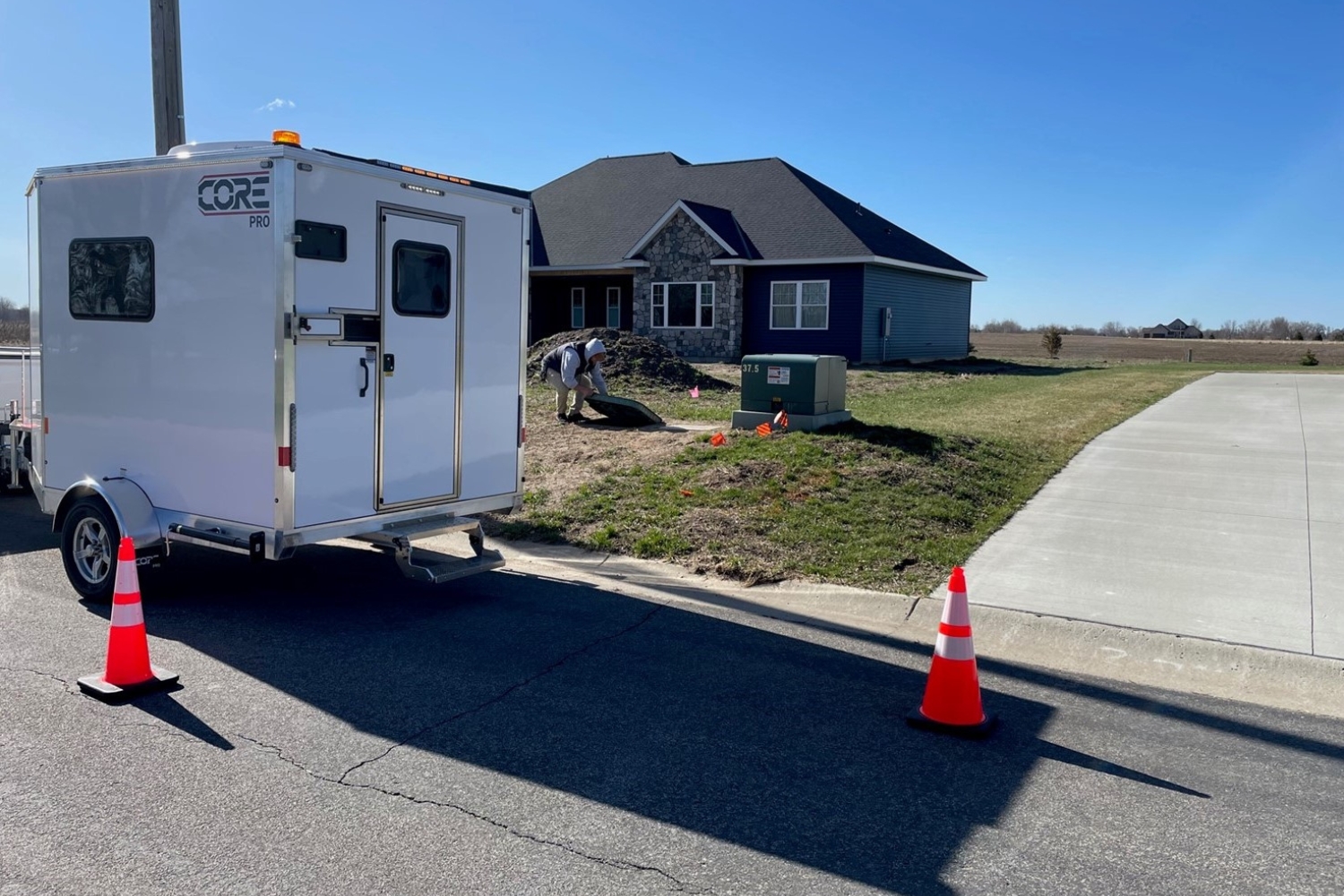

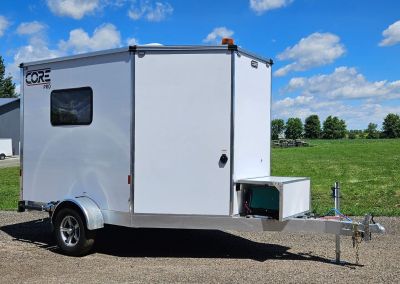

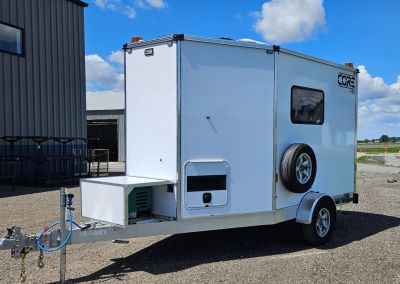

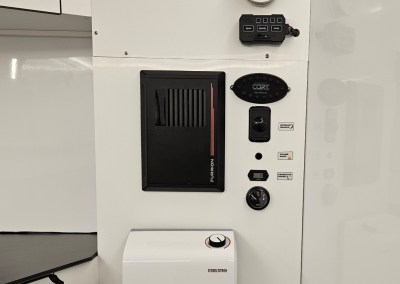

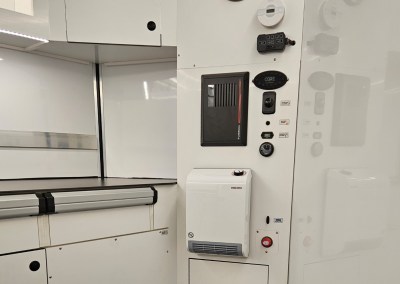

A compact and lightweight core pro fiber splicing trailer designed for efficient and reliable fiber splicing operations.

7012FT

Tandem Axle (shown w/ options)

Overall Length	204″
Overall Height (A/C)	118″
Overall Width	102″
Ground Clearance	16″
Interior Height	80.5″
Interior Width	80.25″
Interior Length	139.125″
Base Weight	2,410 lbs
GVWR	7,000 lbs

360° View 7012FT

E-DRIVE

Up to 25.5kWh Lithium Battery Storage | Up to 660W of Solar Panels | 9kW Boost & 4kW Constant Inverter

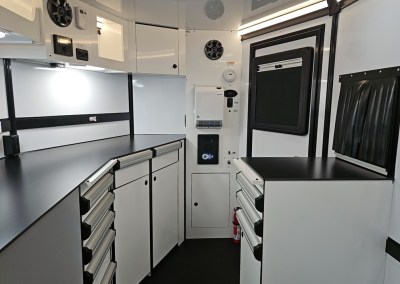

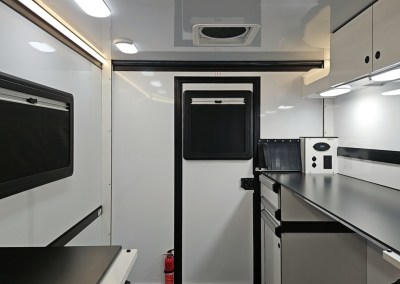

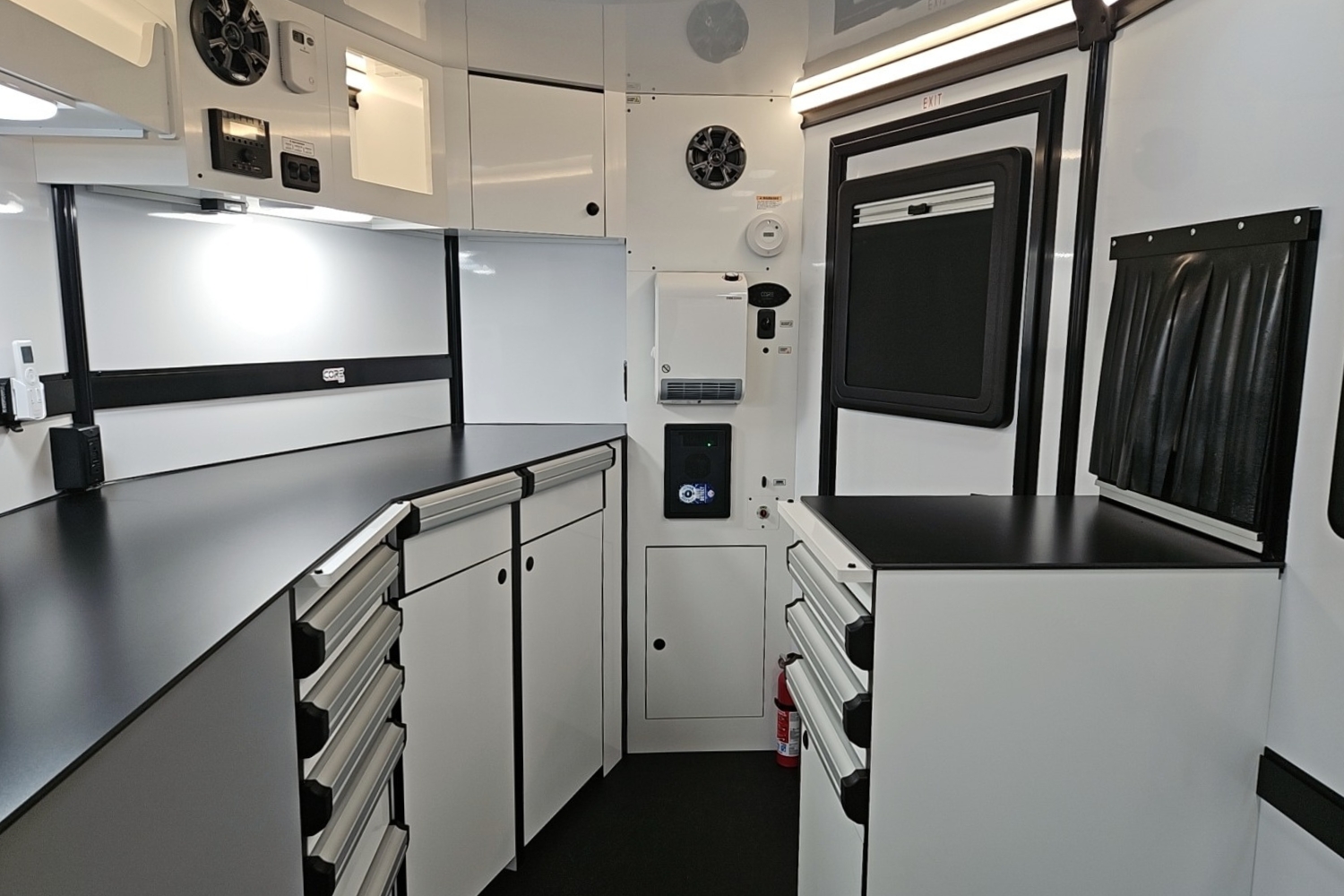

STEP INSIDE – VISUALIZE YOUR LAYOUT

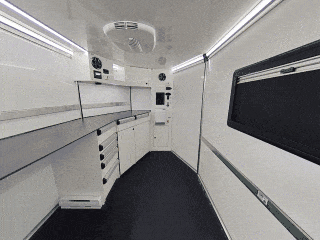

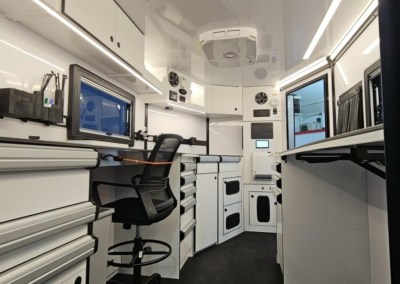

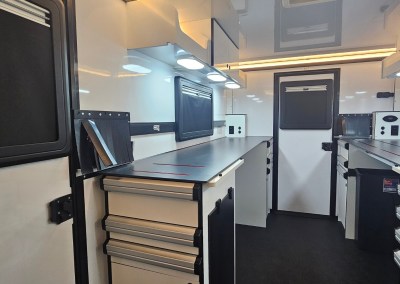

SEE THE DETAILS: 360° INTERIOR WALKTHROUGH

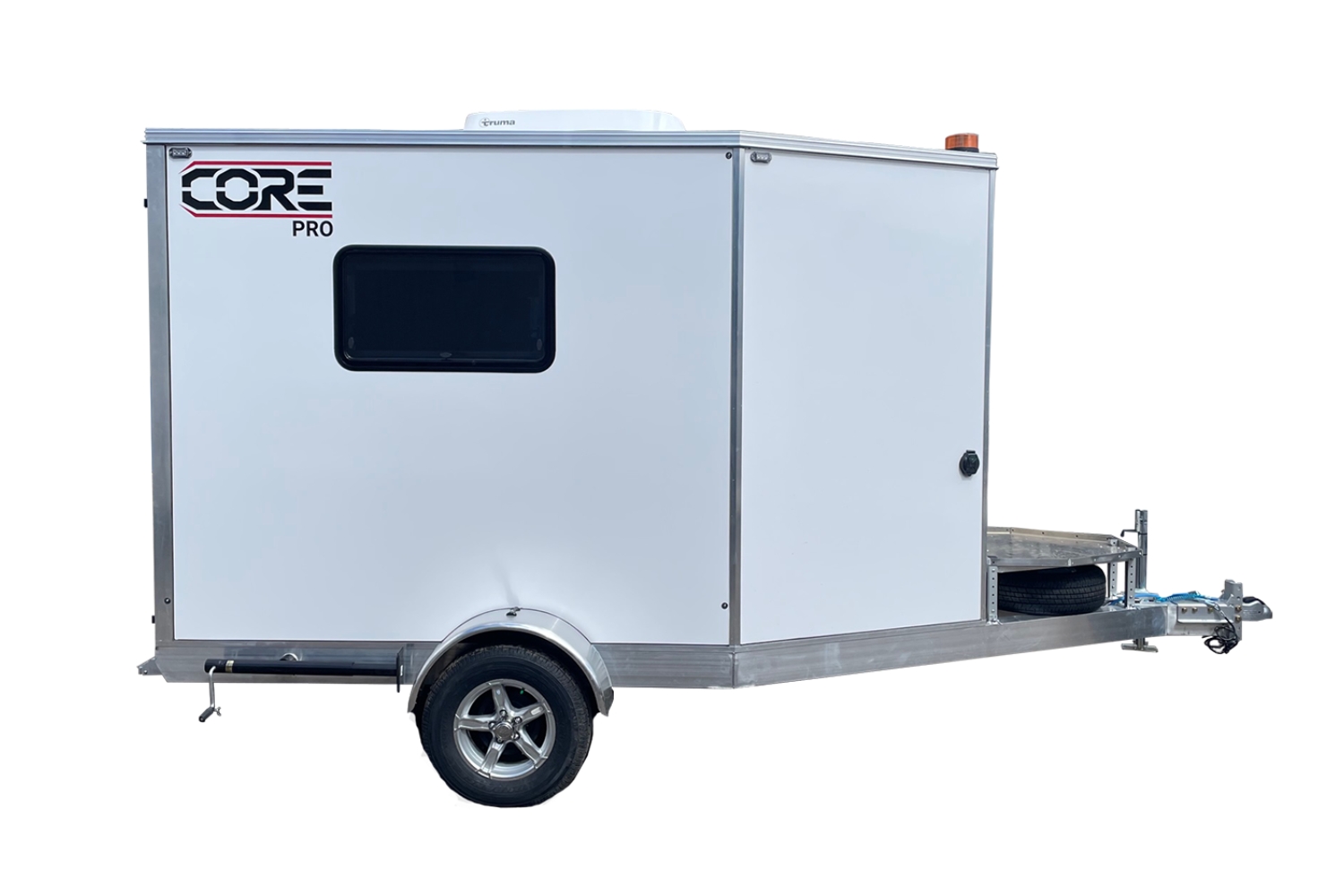

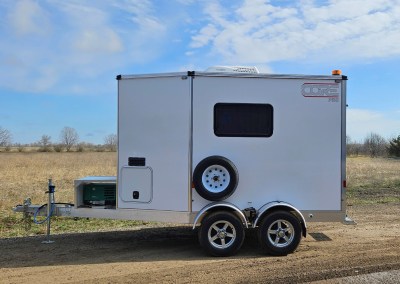

A high-quality trailer with a sleek, modern design and durable composite construction.

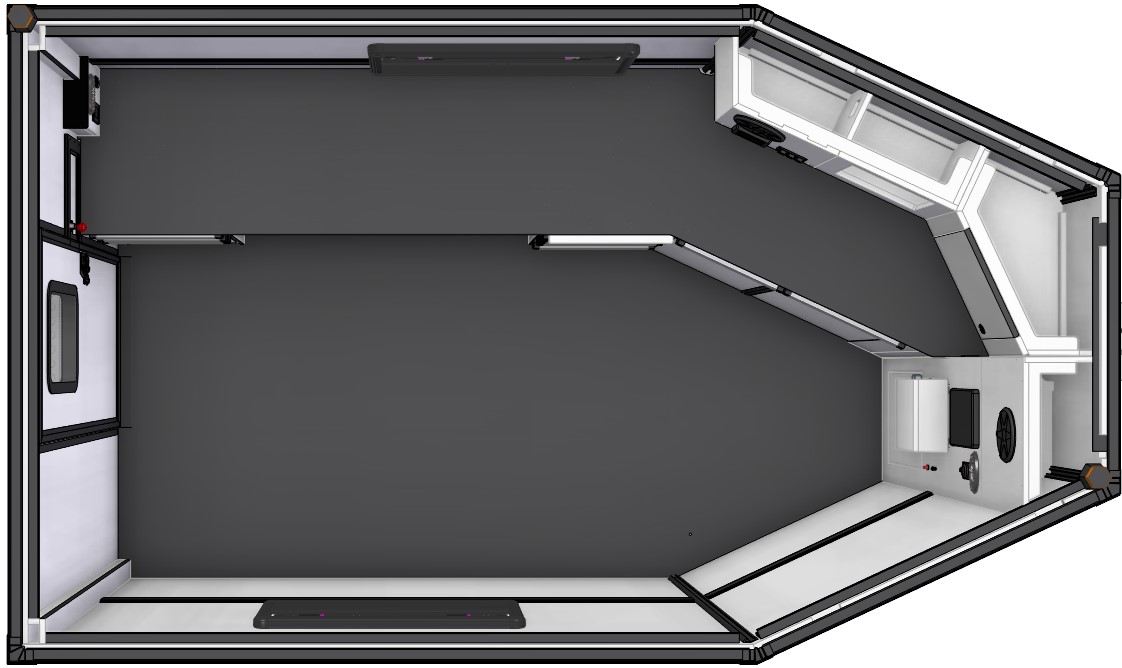

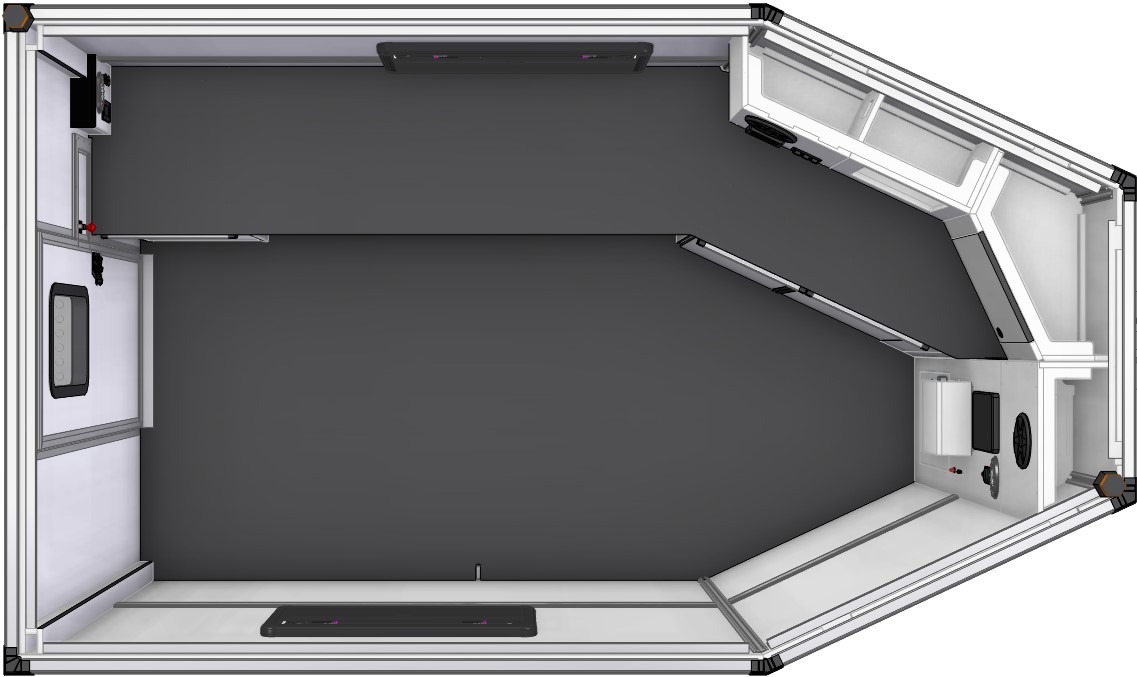

Example Floor Plans

Fully Featured

Standard

Fleet Edition

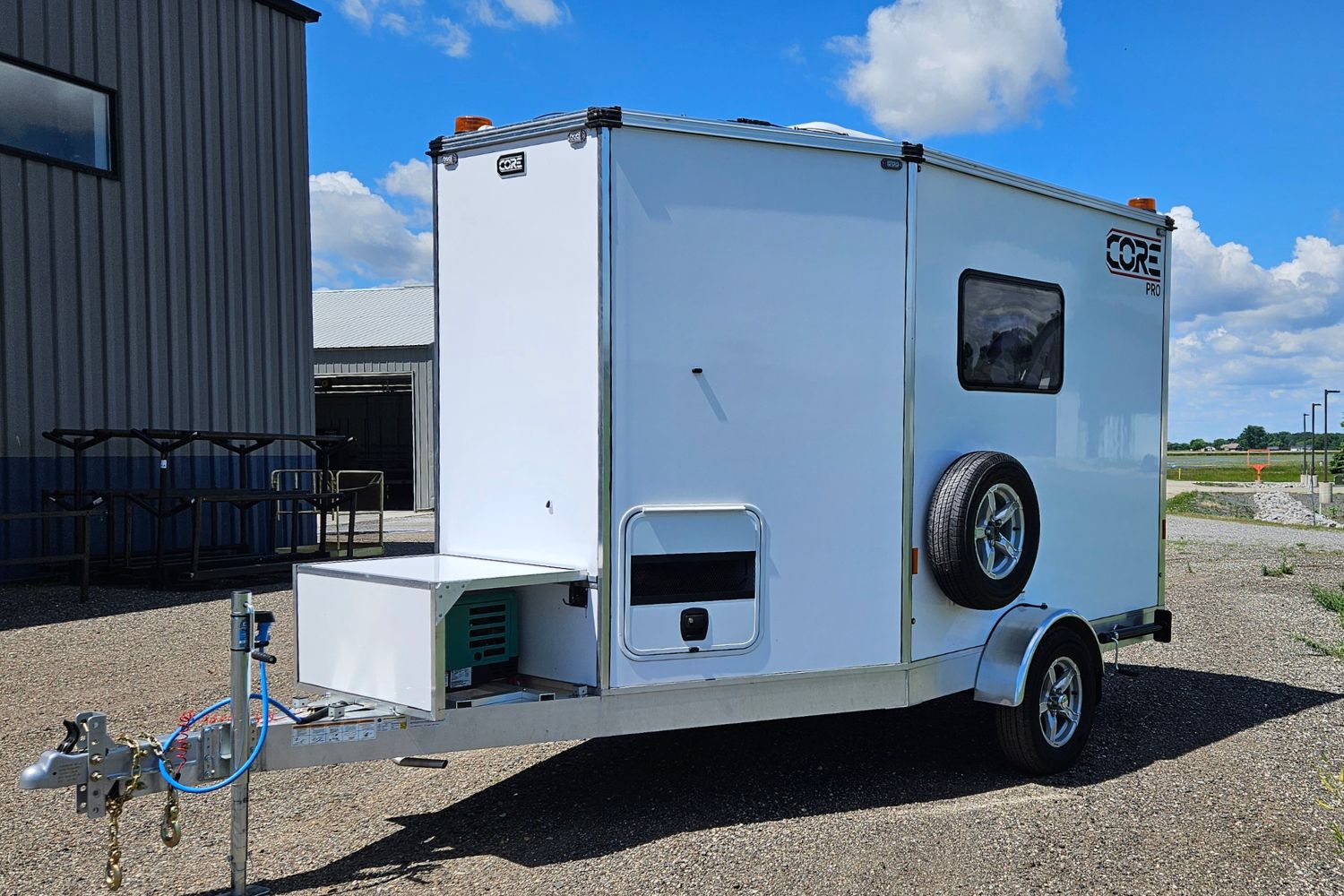

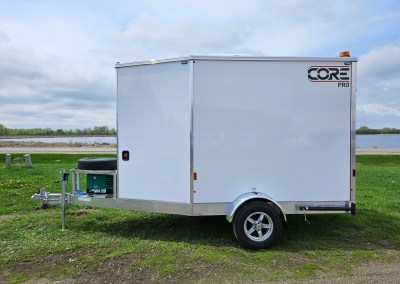

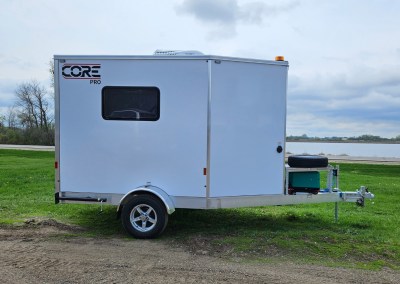

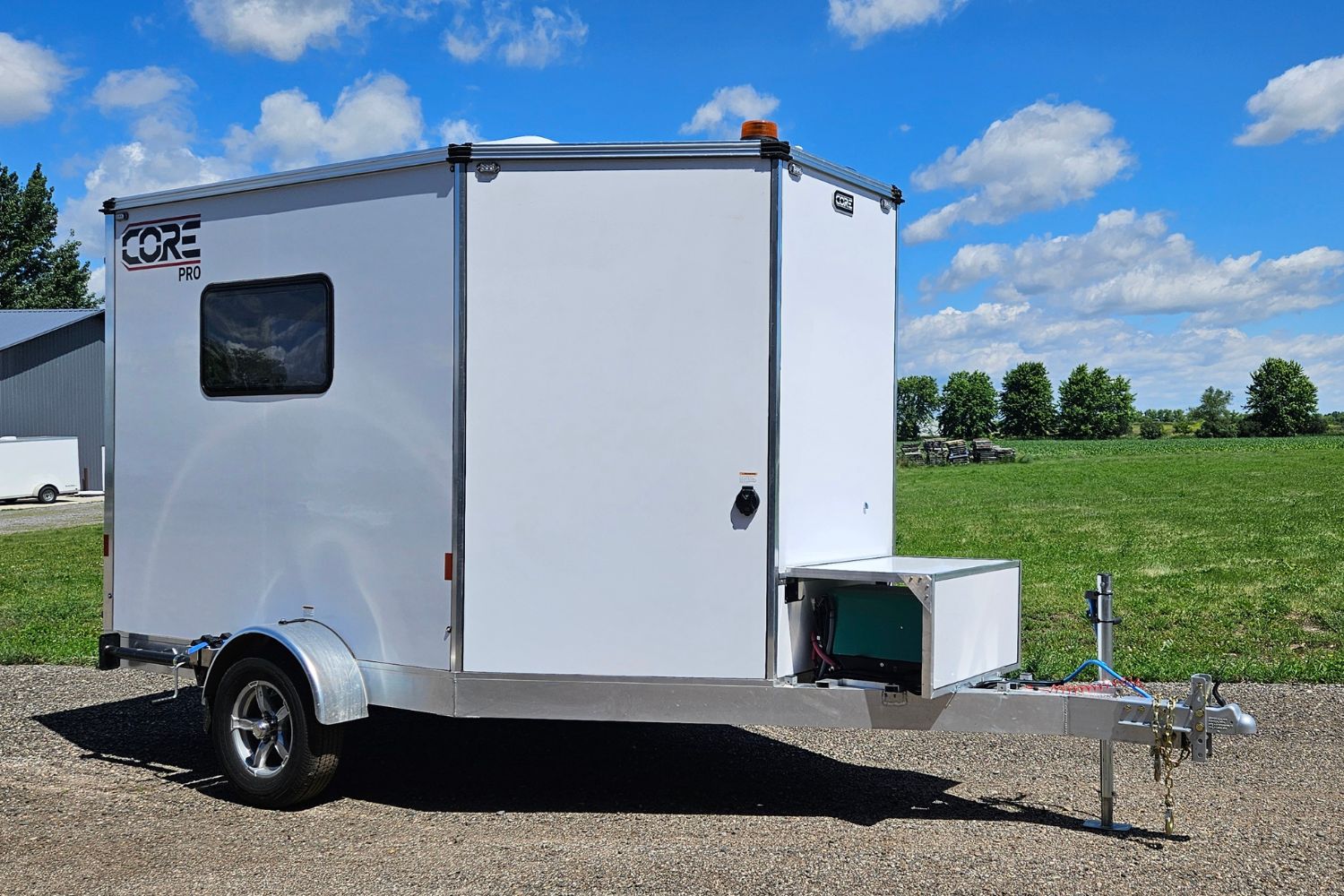

7012FS

Single Axle

Overall Length	204″
Overall Height (A/C)	118″
Overall Width	102″
Ground Clearance	16″
Interior Height	80.5″
Interior Width	80.25″
Interior Length	139.125″
Base Weight	2,200 lbs
GVWR	3,850 lbs

360° View 7012FS

E-DRIVE

Up to 25.5kWh Lithium Battery Storage | Up to 660W of Solar Panels | 9kW Boost & 4kW Constant Inverter

STANDARD FEATURES

INTELLI-CORE Structural Composite Floor, Walls, and Roof
Fully Insulated R15 Roof, R11 Floor, and R9 Walls

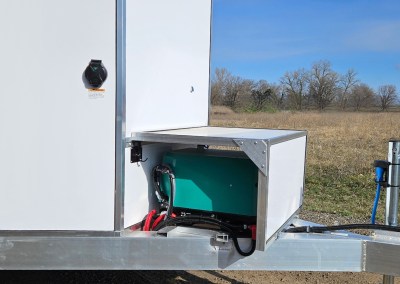

30 Amp Generator/Shore Power Plug
High Efficiency, Low Profile Roof Mount A/C Unit
1500W Elec Wall Heater and 500W Toe Kick Heater
Full Perimeter LED Halo, Rear & Front Work Lights
LED Roof Mounted Beacon Lights

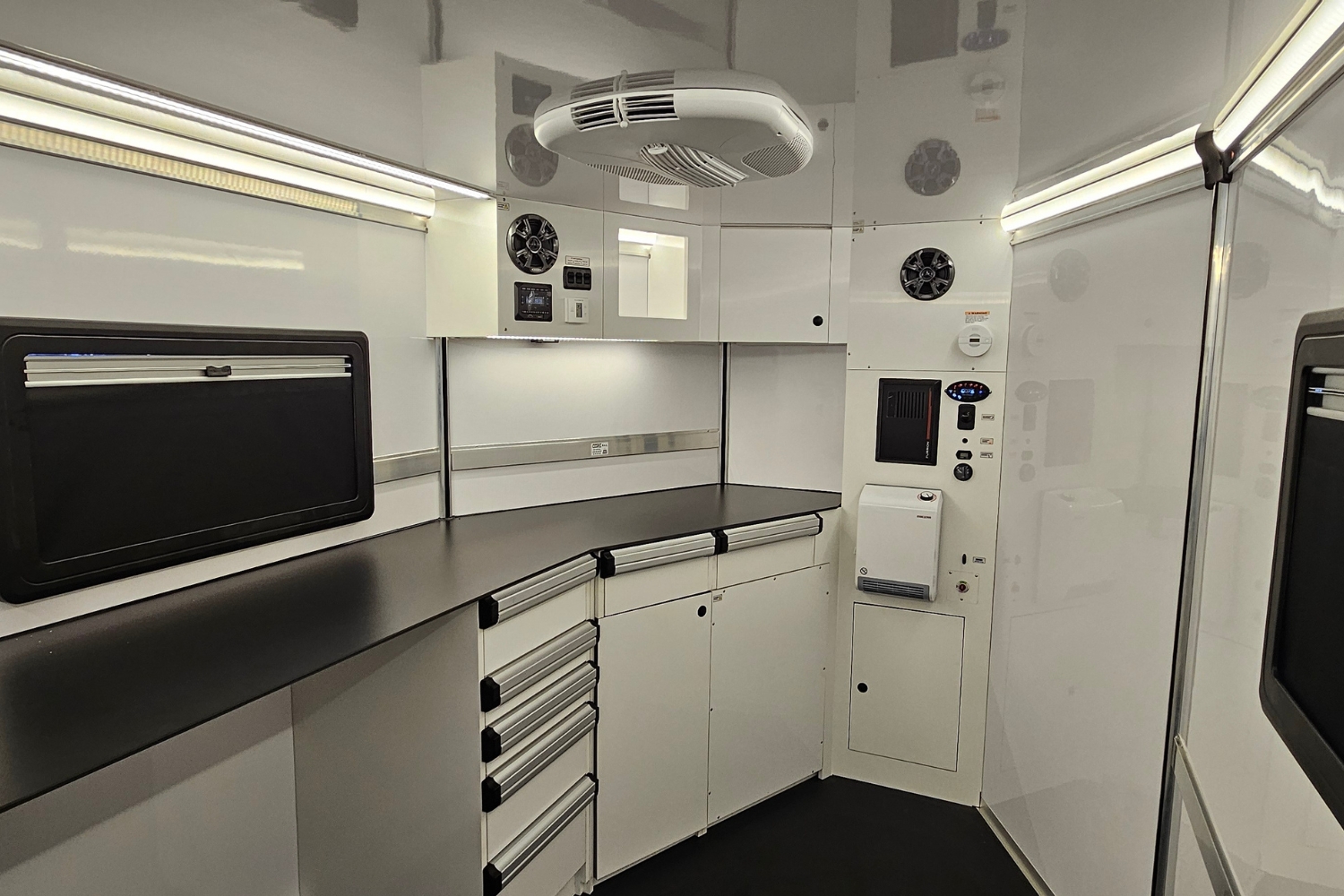

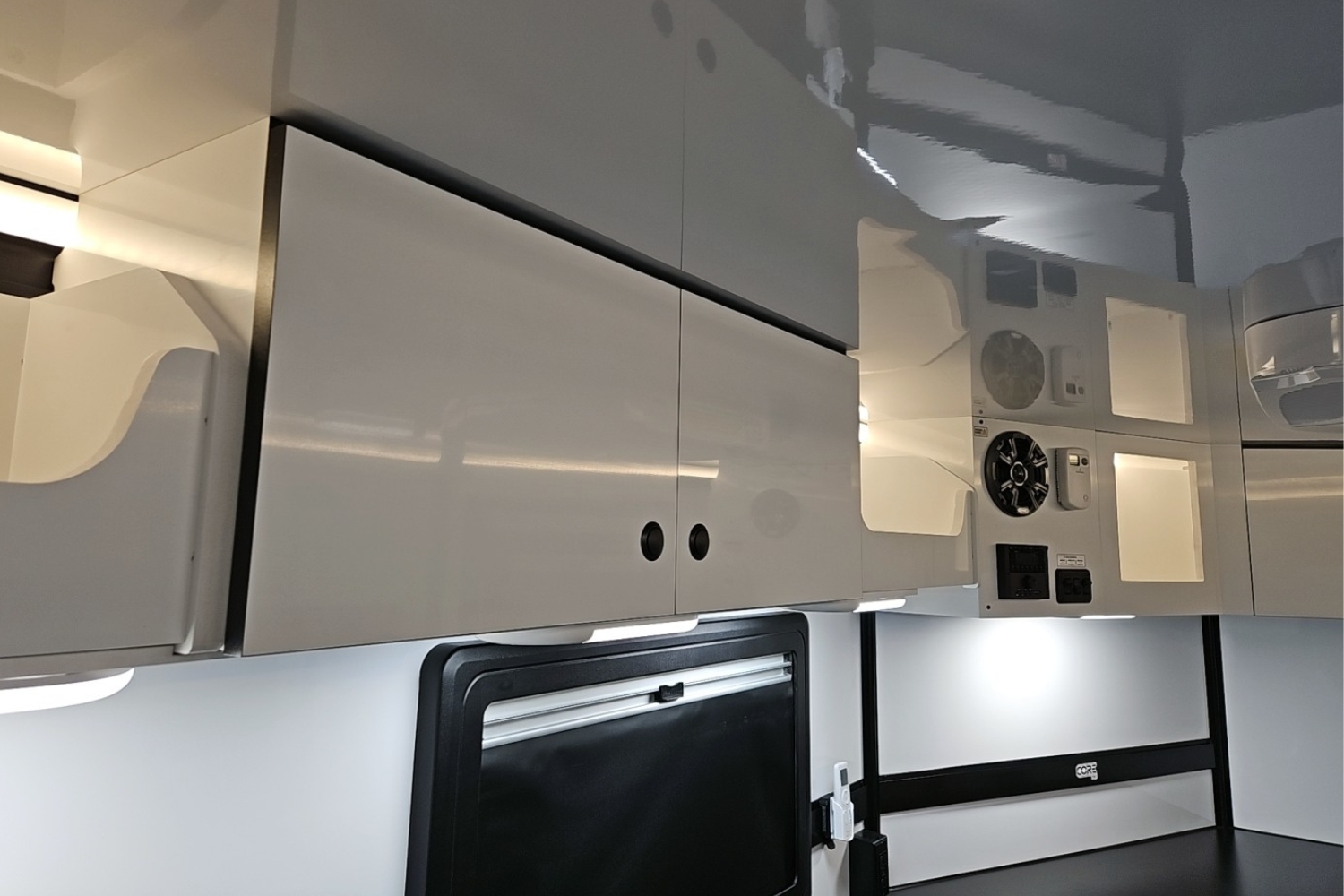

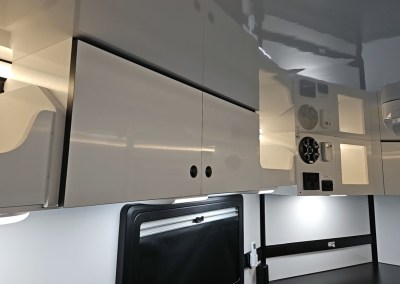

Storage Cabinets, Tool Chests & Laboratory Grade Countertops
Torsion Axles w/ Electric Brakes and Aluminum Wheels
CORE Rail Mounting System for Tool Storage
And More!

OPTIONAL FEATURES

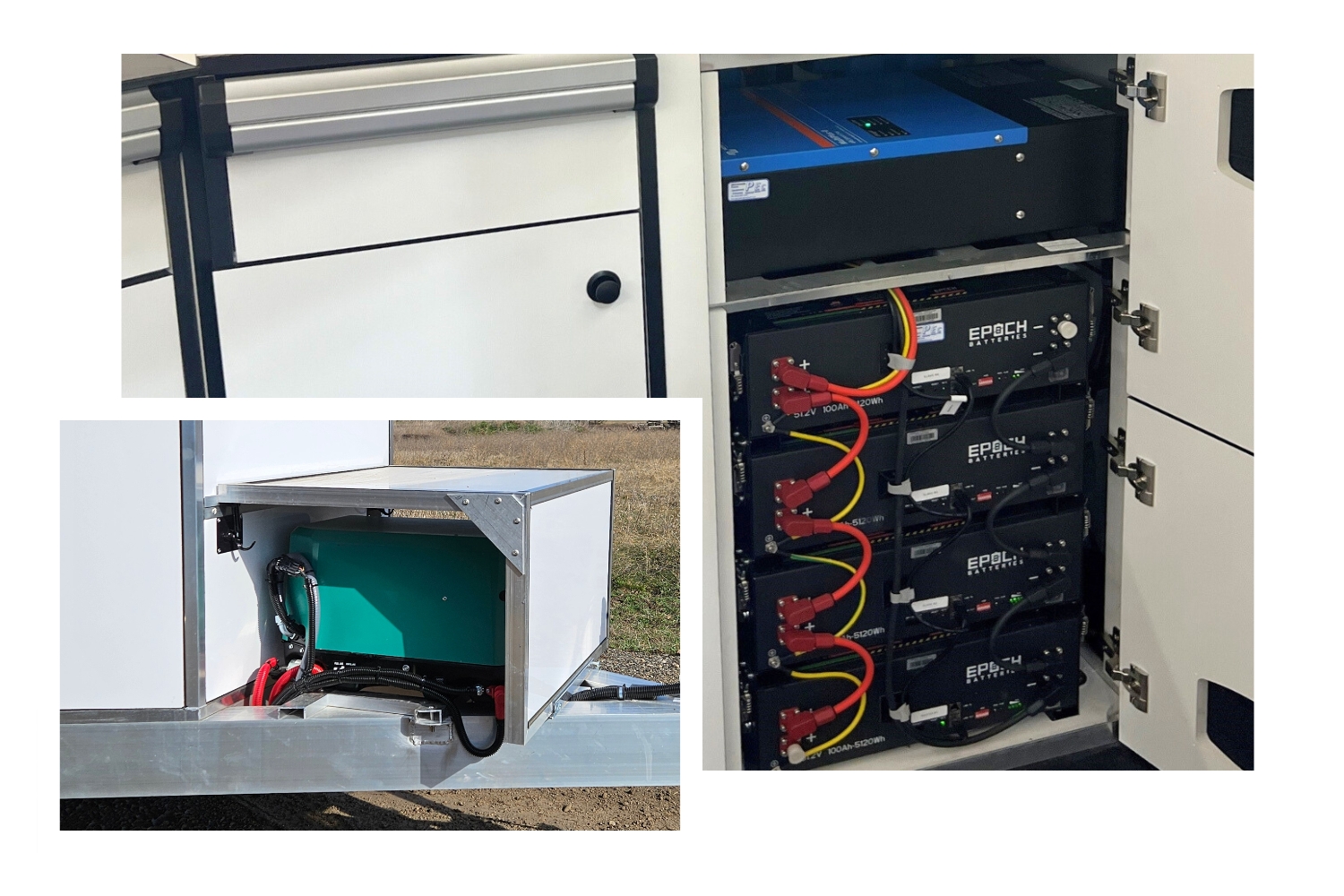

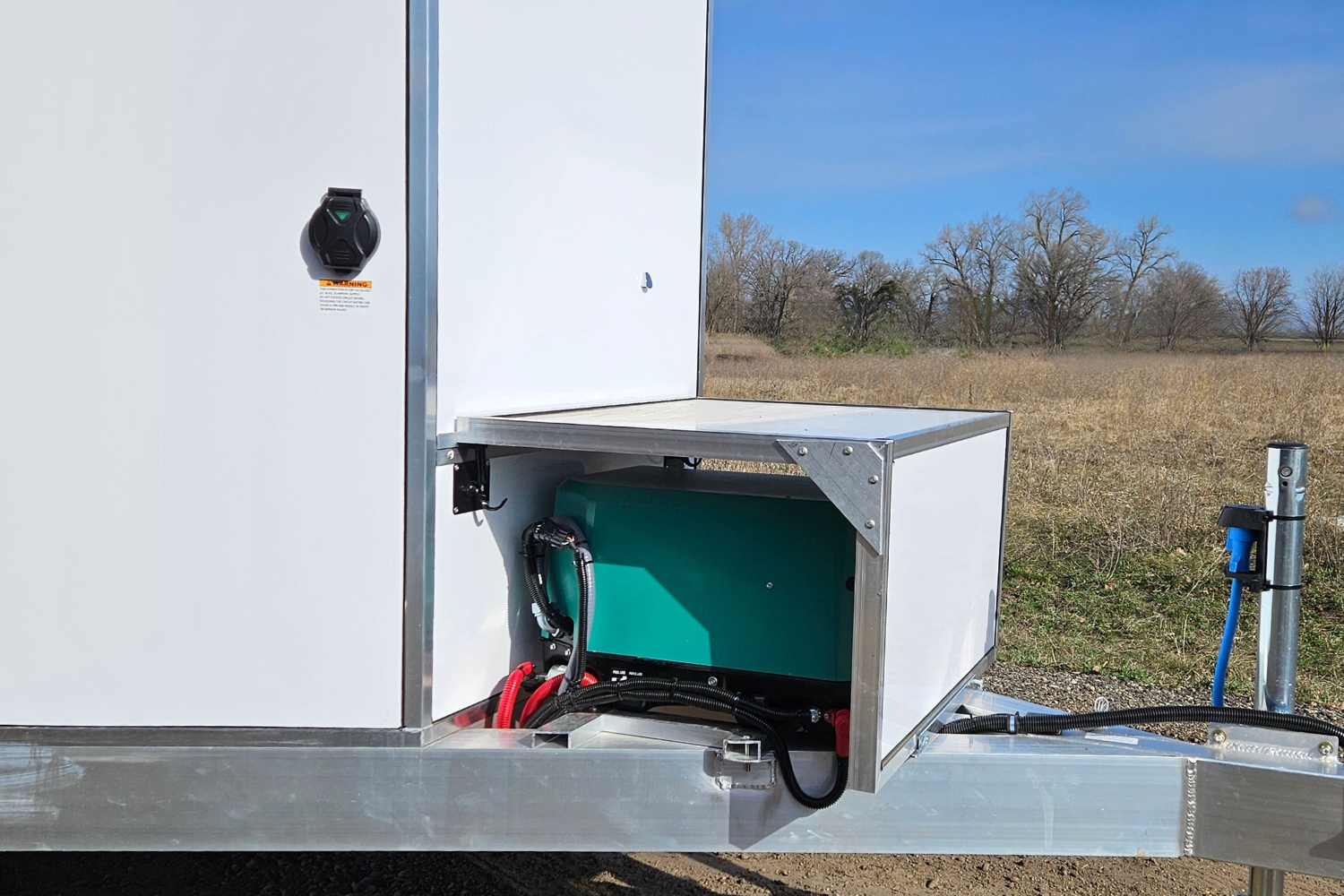

E-DRIVE Electric Power System
- 15.3kWh Lithium Battery Pack, 4kW Inverter, 360W Solar Array
Add 5.1kWh Battery Pack (Can add 2 additional)
Max Solar Pkg: Increase to 1140W on 7015 and 660W on 7012
